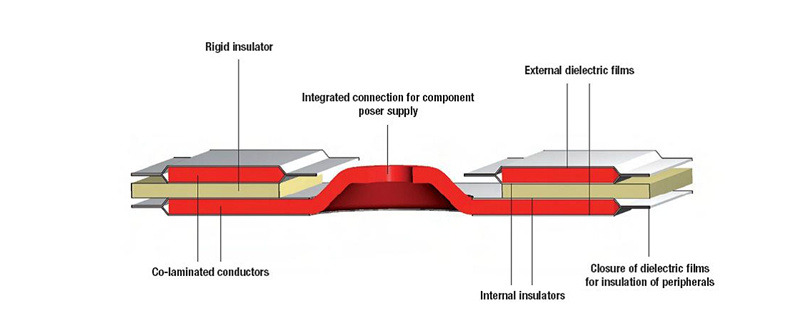

Laminated busbars, also known as composite busbars and composite copper bars,It's a multi-layer composite structure connection row, which can be regarded as a highway for power distribution systems. The use of composite busbars provides a modern, easy to design, fast to install and clearly structured power distribution system .
It has High-power modular connection components with repeatable electrical performance, low impedance, anti-interference, high reliability, space saving, and simple and fast assembly.
Composite busbars are widely used in power and hybrid traction, electric traction equipment, cellular communications, base stations, telephone switching systems, large network equipment, large and medium-sized computers, power switching systems, welding systems, military equipment systems, power generation systems, and electric equipment. Conversion module, etc.
It requires the insulating materials are smooth and fine on surface, high planeness , arc resistance and high breakdown voltage etc.
JY Machinery experts in machining insulating materials for laminated bus bars. Our capabilities in combination with Computer Numerical Controlled (CNC) and wire Electrical Discharge Machining (EDM) technologies allow us to provide virtually any feature or shape, as well as design and manufacture test fixtures.
To meet the growing demand for precision machined insulating materials for bus bars, JY Machinery’s manufacturing facility has full in-house machining capabilities.
What we can do?
Experts at machining aluminum and common metal and plastic materials.

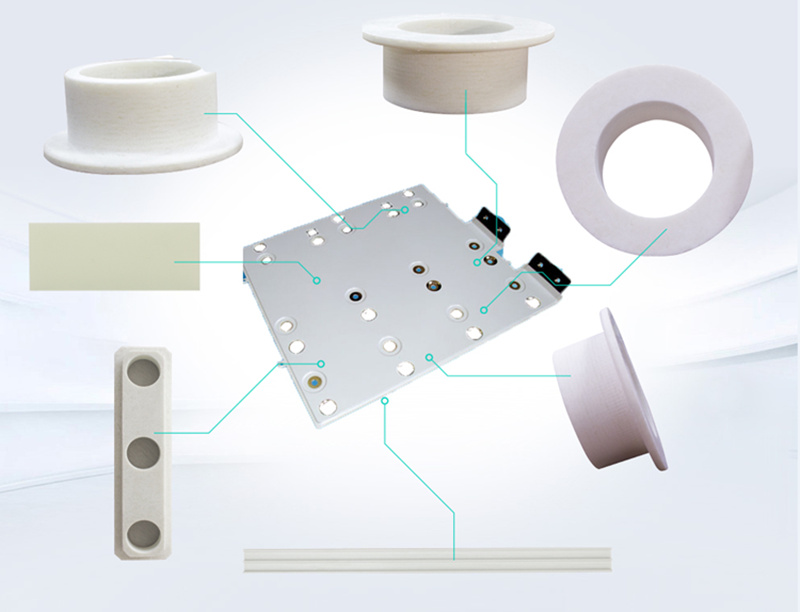

Machine insulation materials including G10/FR4 /GPO-3/FR5/G11 etc.
Meet better than +/- 0.002mm tolerance on complex parts
Coordinate Measuring Machine (CMM) verifies dimensions
