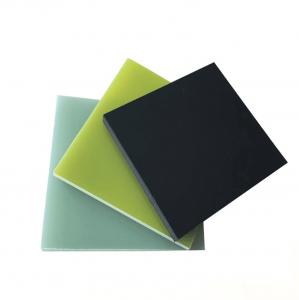

Epoxy fiber glass fr4 g10 sheet

• Thickness:0.1-100mm

• Standard Sheet Sizes:1020*1220mm 1030*1230mm 1220*2440m

Products description

FR-4 epoxy glass fiber cloth laminated sheet is made of imported alkali-free glass fiber cloth impregnated with imported high quality epoxy resin

and suitable in imported organic fillers by processing under pressure and heat,it is rigid insulating laminated sheet.

Owns the character of high temperature resistance, High-intensity,Flame-retardant grades to UL94-V0,Excellent mechanical strenght and dielectric properties,good heat resistance and good-smoothness ect.


Product Parameters:

Item:

Unit

Result

Density

g/cm³

1.9

standard color



 yellow, green

Fire Retardancy Grade:

 --

UL94-V0

Flame Resistance:

°C

170-180

Voltage Resistance(penetrating)

KV/mm

18

Voltage Resistance

KV/mm

12

Arc Resistance

S

60-80

Volume resistivity:

Ω*cm

10 ^6

Surface resitance:

Ω*cm

10 ^6

Compressive Strength(Vertical):

MPA

≥350

Compressive Strength

MPA

≥300

Anti-impact intensity

KJ/ m2

 ≥33

Bending strength

kg/mm2

≥340

Dielectric constant (1MHz) :

/

5.4

Adhesive strength:

kg

700-900

Compressive strength(Horizontal):

kg/mm2

20-24

Water absorption rate:

%

0.07-0.12

thickness/mm

tolerance/mm

thickness/mm

tolerance/mm

0.2-0.3

± 0.02

20

± 0.5

0.4-0.7

± 0.03

25-30

± 0.6

0.8-1.2

± 0.05

35-40

± 1

1.5-2

± 0.1

40-100

± 1.5

3-6

± 0.2





8-12

± 0.3





15

± 0.4

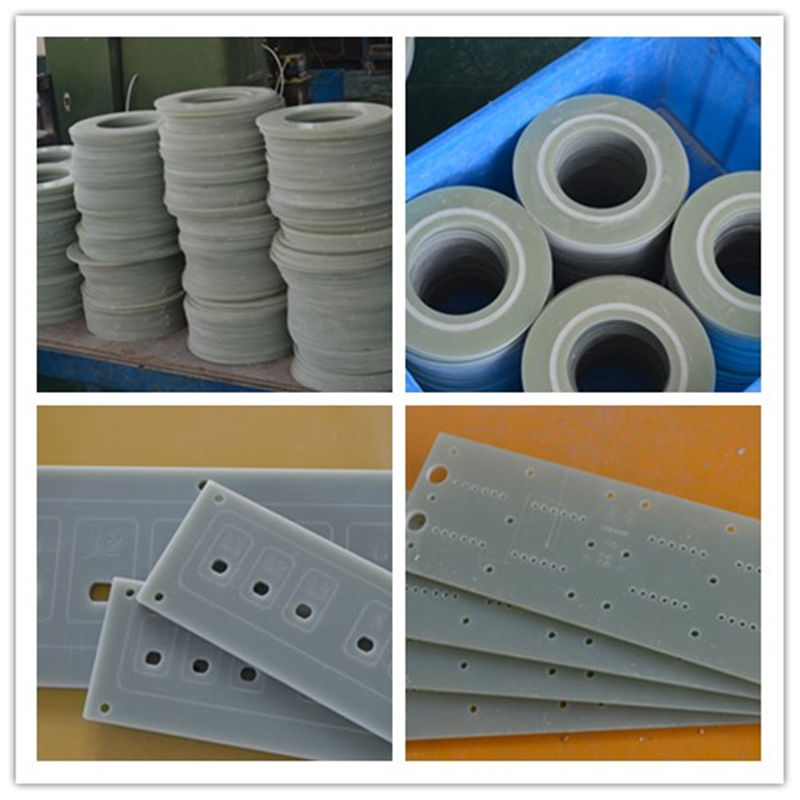

Product Show:

Product Features:

Flame Retardant FR4 G10 G11 Rod Epoxy Fiberglass sheets are woven fiberglass soaked in an epoxy resin and then compressed and baked. It is very dense, lightweight, and impervious to water.  The advantages of this material:

Strong, stiff, tough and durable
Excellent dielectric strength
Good machinability
Light weight
Heat and water resistant
Corrosion and chemical resistant
Good mechanical strength
Excellent wear properties
Good dimensional stability
Low moisture absorption
Excellent creep resistance


Our Servies:

1.Rich Experience
Professional materials background and non-metallic materials processing experiences with more than 14 years,using in industry field like transformer,generator,electric motor,etc.

2.Provide one-stop service from raw material sheet supply to customized further processing of nonmetal insulating parts.
We can develop and produce various high standards and personalized products according to customers' requirement.

3.Pre-sales Service
We have professional sales team to offer comprehensive technical and business consultation services. Designing and fabricating targeted products according to the special requirements of clients.

4.After-sales Service
Highly inspecting equipment in every working procedure, quality comes first.

5.Our Advantage
Competitive price, Flexible payment options, Quick speed.
Always ready for supplying the best solution for your various application.


Main Application:


With high mechanical strength, Insulation, heat resistance, electrical properties and good moisture resistance properties.

Widely range of applications, for example: Suitable for using as insulating structural parts in electric equipment, such as electric generators, motors, switch board, pcb , etc.


Main Insulation Product Categories:

• Epoxy Glass Fiber cloth laminated sheet(3240/FR-4/G-10/FR-5/G-11)
• Phenolic laminated sheet
• Polyester Laminated sheets(GPO-3/UPGM 205)
• SMC/BMC/DMC Molded Parts
• Insulation Rods&Tubes
• Pultruded Profiles
• Engineering Plastics Parts


FAQ:

Q: Are you a trading company or a manufacturer ?
A: We are one of the leading manufacturers in the industry since year of 2004.

Q: How long is your delivery time?
A: Generally it is 3-7 days if the goods are in stock. Or it is 10-30 days if the goods are not in stock, it is according to quantity.

Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.

Q: How can you guarantee the quality of mass production is same with the sample sent to me before?
A: Our warehouse staff will leave another same sample as yours. The production process will be under your requirement.

Q: What is your terms of payment ?
A: Payment≤1000USD, 100% in advance. Payment≥1000USD, 30% T/T in advance ,balance before shipment.
