China Factory Wholesale G10 Insulation Epoxy Tube

1. Customized Size Tube

2. Epoxy Fiberglass

3. High Voltage Insulation Cover FRP Filament

Products description

Product Show:

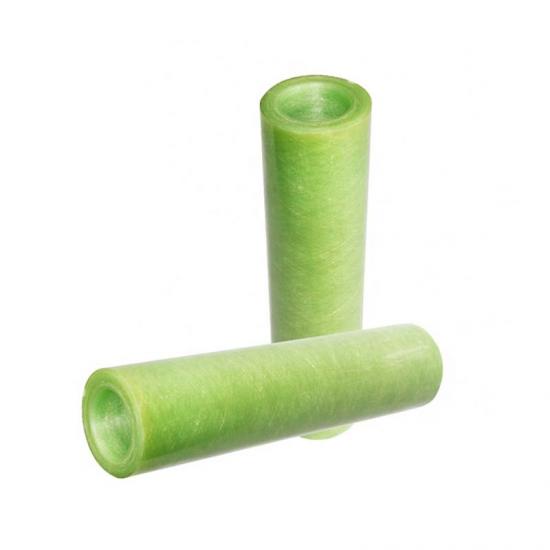

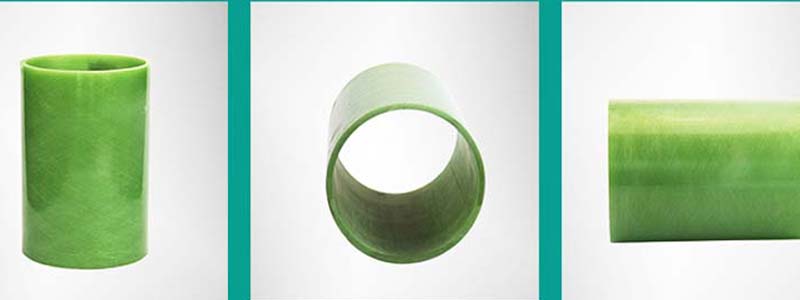

G10 tube

Product Features:

The epoxy tube developed and produced by JY Machinery is made of high-quality glass fiber impregnated with ultra-low viscosity and high temperature resistant epoxy resin and cross-wound under the control of a computer. It is a high-quality raw material for the manufacture of composite hollow bushings for high-voltage and ultra-high-voltage SF6 high-voltage electrical appliances and current transformers. The company has been supplying various specifications of winding pipes with voltage levels ranging from 40.5KV to 550KV for many well-known domestic and foreign high-voltage electrical switch manufacturers for many years, and has provided various specifications of winding pipes for many domestic and foreign transformer tap changer manufacturers. The product implements the standard GB/T23100-2008.

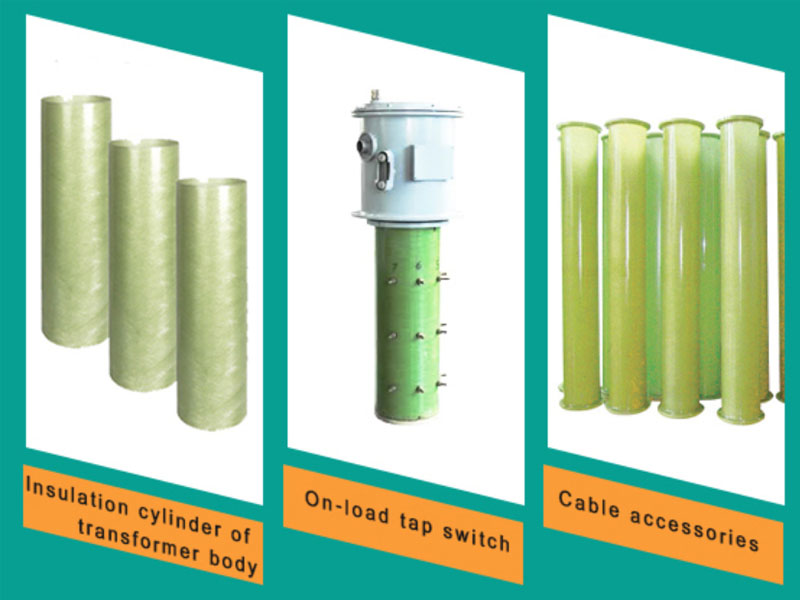

Product Application:

epoxy tube

Production Step1-Winding Process

High Voltage Insulation epoxy tube

Production Step2-Cutting Process


Production Step3-Cleaning and Inspection Process

FAQ:

Q:What about the package of product?
A:1. Wooden pallet with carton.
  2. Plastic pallet with carton.
  3. Wooden wooden pallet with wooden case.

  4. According to customer requirements.


Q:What's the payment?

A:30%TT advance , 70% after send the copy of the BL.We accept T/T, Western Union ,USD.


Q:If I need sample,what should I do?
A:It's our pleasure to send sample for you.

You can send me your delivery address by email or message.We will send you free sample at first time.


Q:I can't find the product I need on your website, can you make product according to my design?
A:Yes,of course.The products showing on our website are not for sales, but only for helping you understand our services. We professional do custom work according to every customer's design. Please do not hesitate to send us your design drawing now for your next project!

Q:How can I feel safe to do business with your company?
A:We will make the confidentiality agreement before cooperation.

Leave a message
If you are interested in our services and want to know more details,please leave a message here,we will reply you as soon as we can.
Related Product
g10 fiberglass tube

G10 and FR4 laminate tube supplier

JY Machinery provide custom CNC turning, milling, routing and sawing services. We specialize in manufacturing large parts and our equipment is designed to process parts up to 3000mm or longer, with tolerances to +/- .002mm, depending on the material. Call JY Machinery today for all of your G10/FR-4 machining needs.
g10 g11 epoxy glass tube

Customized halogen-free g10 g11 tube manufacturing

G-10/G11 Tubes Product features: Color: Green,and customized is available Max. Temperature: 265° F Tensile Strength: 35,000-50,000 psi (Excellent) Impact Strength: 5.5-12 ft.-lbs./in. (Excellent) Hardness: Rockwell M110 (Extra Hard)
Fiberglass Tube 3240

Reinforced Epoxy Fiberglass Tube 3240 for Insulation

3240 Tube Custom composites are engineered to meet application criteria For Electricity Application
NEMA Grade G10/G11 Tubes

NEMA Grade G10/G11 Epoxy Fiberglass Insulation Tubes for Electricity Mechanical Parts

G10/G11 Tube Custom composites are engineered to meet application criteria Electricity Mechanical Parts

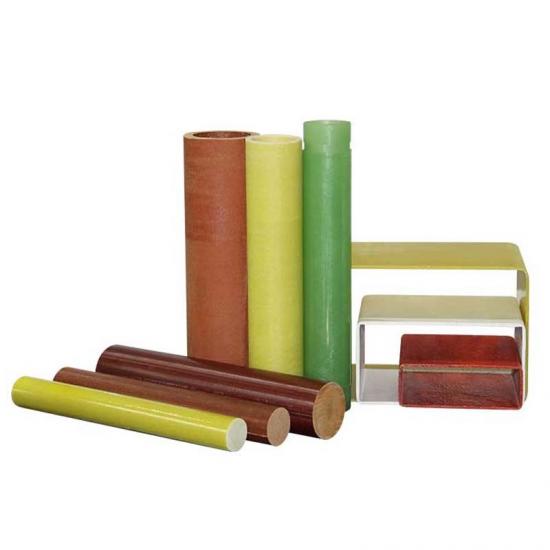

G10 FR4 Glass Epoxy Rod

Insulation FR4 G10 Epoxy Resin Fiberglass Rod Bar

Phenolic G-10/FR4 rod is a fiberglass-reinforced plastic with epoxy resin that provides high moisture resistance Offers good electrical insulation properties for electrical applications Temperature Range:280° F Tensile Strength:36,000 psi
fr4 g10 g11 epoxy tube manufacturing

High Flame-Retardant Epoxy Fiberglass Tube Excellent Voltage Resistance

Technical advantages, mold development and design capabilities, excellent supporting capacity. Excellent size, space stability, non cracking, non Explosive Edge Excellent Water Resistance,Excellent Voltage Resistance Available for humid environment and immerse into transformer oil
