Product Description
G10 epoxy glass tube is a thermo setting industrial laminate consisting of a continuous filament glass cloth material with an epoxy resin binder,in heat rolling and tightening, baking and curing.It has characteristics of high strength, excellent electrical properties and chemical resistance not only at room temperature but also under humid or moist conditions.
Epoxy resin fiberglass filament wound tubes are made of non-stop fiber wet winding. It is specially developed for high-voltage electrical equipment structural parts such as reactor, lightning arrester, fuse, transformer, on load tap changer, transformer,etc. the product performance parameters meet the requirements of IEC standards,the product is leading in China.
The Features of G10 FR4 G11 Epoxy glass fiber tube
1) Excellent mechanical strength,
2) High mechanical load
3) High voltage resistance and low dielectric loss.
4) Light weight
5) Adjust the winding angle to satisfied with your any mechanical strength demand
6) Thickness is from 1mm to more
7) Work temperature: B (125C)/ F(155C)/ H(180C)/ 220-250 C
8) Corrosion resistance, Resistance to chemical corrosion (SF6) .
9) High temperature resistance
10) No deformation, no layer.
11) Water absorption minimum.
12) Fire Resistance: UL94 V-0.
13) Good flatness, smooth surface, no pits, standard thickness tolerances.
14) Low water absorption, has good moisture resistance and good dielectric properties .
15) Stable electrical insulating properties, good electrical performance in dry or wet conditions.
16) High mechanical strength, good processability Punching, Drilling, Machining and Cutting is available.
17) Good mechanical workability.
18) In high temperature electric performance is stable.
19 ) High mechanical properties and dielectric properties.
20) Corrosion resistant, light

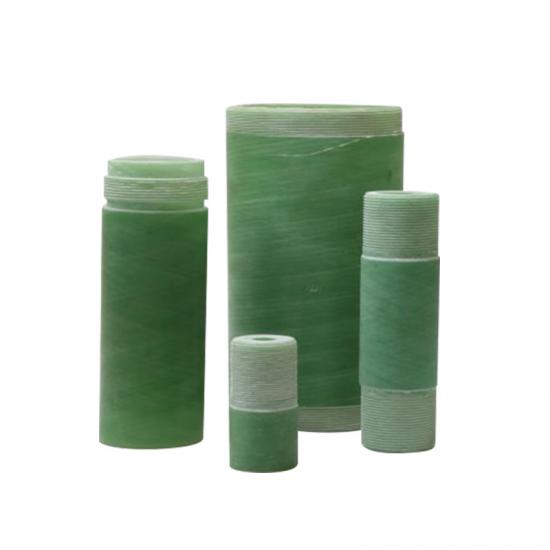

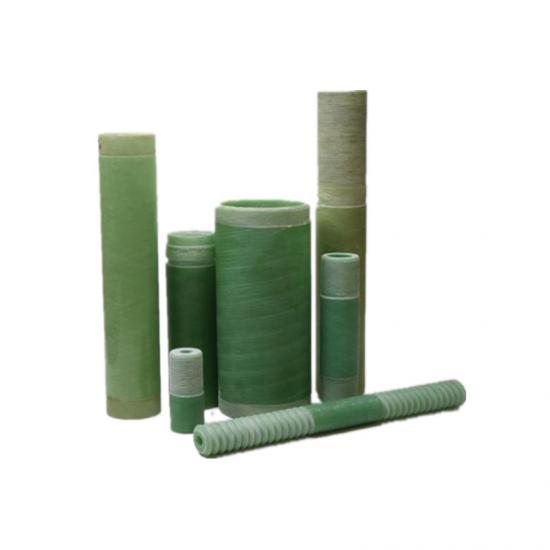

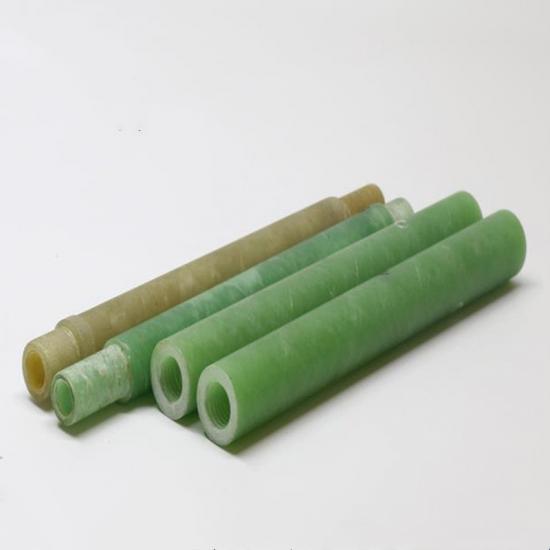

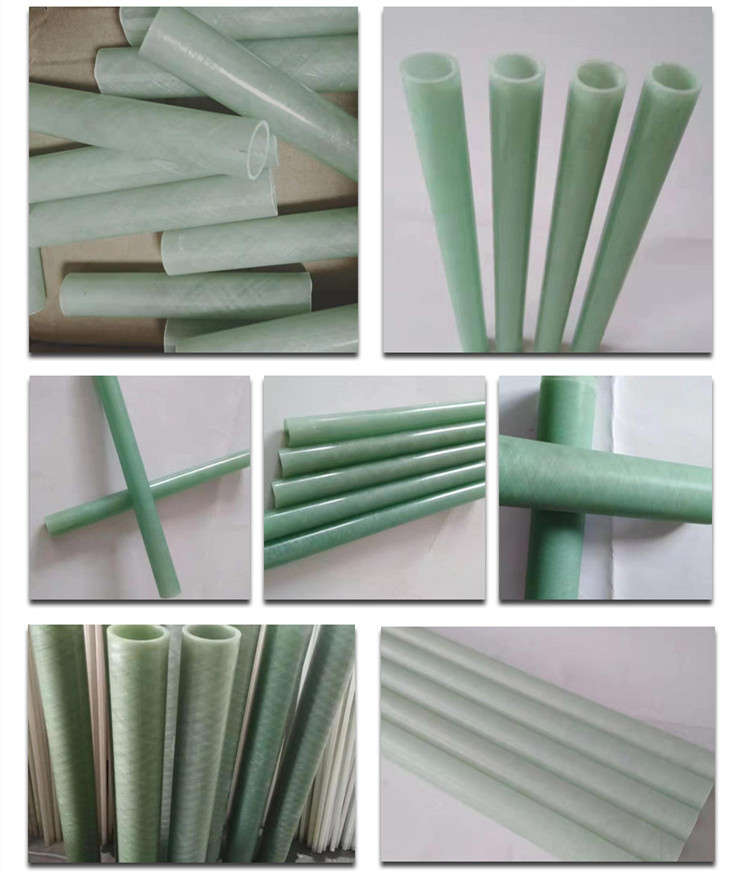

Epoxy resin fiber glass winding tube

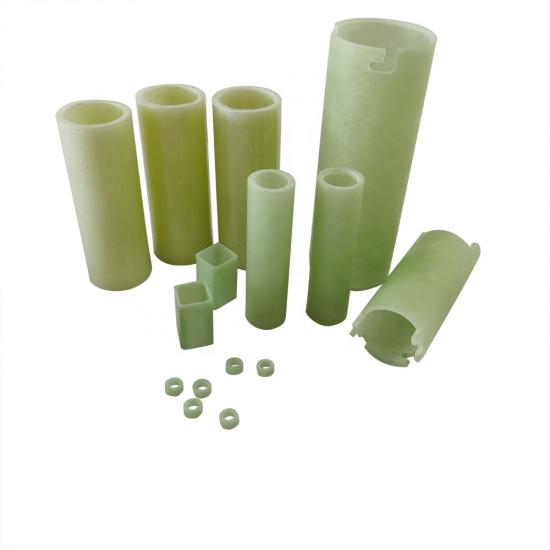

Winding tubes in various specifications (diameter ranges from 4 to 1000 mm) can be produced in accordance with users' requirements, meanwhile, they can be processed according to different requirements (notch, turning, wiring etc.).

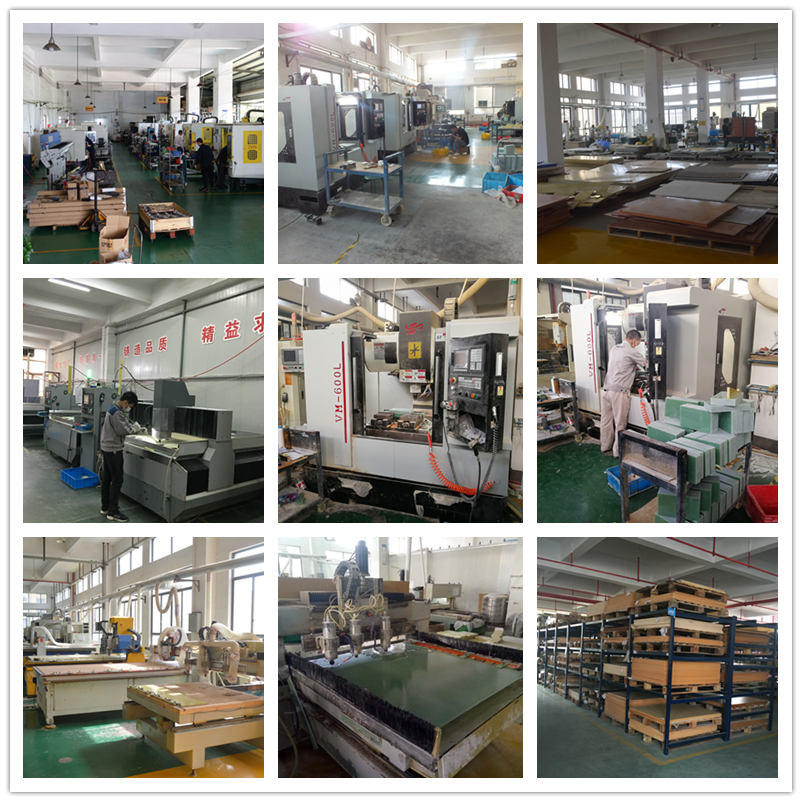

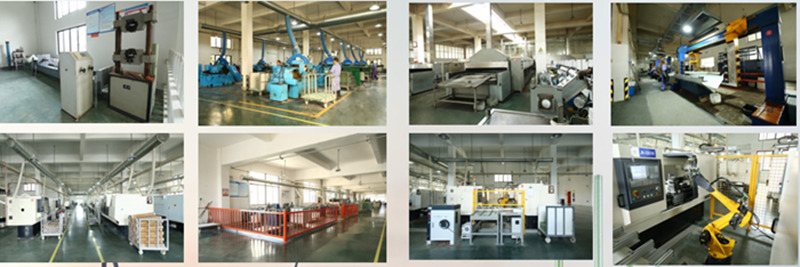

Our Factory
At JY Machinery,we offer custom manufacturing service of thermoset and thermoplastic materials in different grades and sizes.Available in sheet,rod and tube, also these thermoset & thermoplastic materials are easily machined into complex shapes that enable fit with almost any configuration.Machining and fabricating laminates as well as CNC plastic fabrication in a wide array of plastics is something that JY Machinery excels at.
Leave us a message to get quotation and sample!
If you are attractive to our products, please send us a message and we will contact you as soon as we receive it. Email: info@jycncmachining.com Whatsapp: +8615880913506
