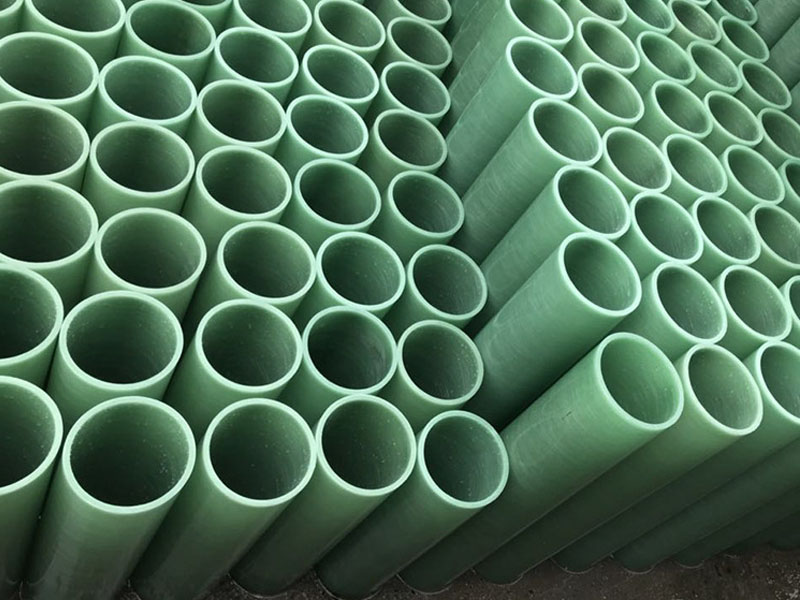

The epoxy glass fiber pipe is made of high-quality glass fiber impregnated with ultra-low viscosity and high temperature resistant epoxy resin and cross-wound under the control of a computer. It is a high-quality raw material for the manufacture of composite hollow bushings for high-voltage and ultra-high-voltage SF6 high-voltage electrical appliances and current transformers. Widely used in aerospace, naval vessels, high-voltage power, energy, communications, electronics, electrical and other high-standard insulation pipe fittings. The product has high bending strength, excellent mechanical properties, acid and alkali resistance, oxidation resistance, and long service life.

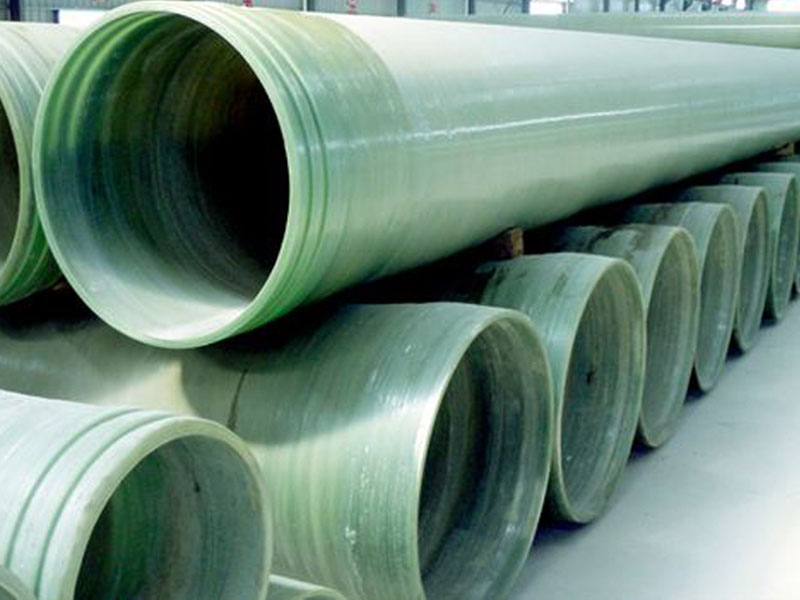

The glass fiber reinforced plastic sand pipe, mainly uses glass fiber and its products as reinforcing materials, unsaturated polyester resin, epoxy resin, etc. as basic materials, and non-metallic particulate materials such as quartz sand and calcium carbonate as fillers as main raw material. It is suitable for underground communication pipelines, underground cable pipelines, municipal drainage and other occasions that have certain requirements for pipeline strength.

The difference between epoxy glass fiber pipe and glass fiber reinforced plastic sand pipe is briefly summarized as follows:

1. The epoxy glass fiber pipe is made of epoxy resin and high-quality glass fiber. It is produced in a refined manner with no delamination at the end of the tube, no bubbles, no impurity fillers, and higher production costs.

2. The glass fiber reinforced plastic sand pipe adopts epoxy resin or added polyester resin and roving fiber, which is extensively produced. Fillers such as sand or stone can be seen in the cut of the pipe end, which effectively reduces the production cost.

3. Epoxy fiberglass pipes are mainly used in industries that require high insulation performance such as high voltage, UHV, and precision electronics.

4. The glass fiber reinforced plastic sand pipes are mainly used for buried communication pipelines and long-distance pipelines such as drinking water, sewage, irrigation, etc.
