What are the processing methods of epoxy board?
2021-02-26

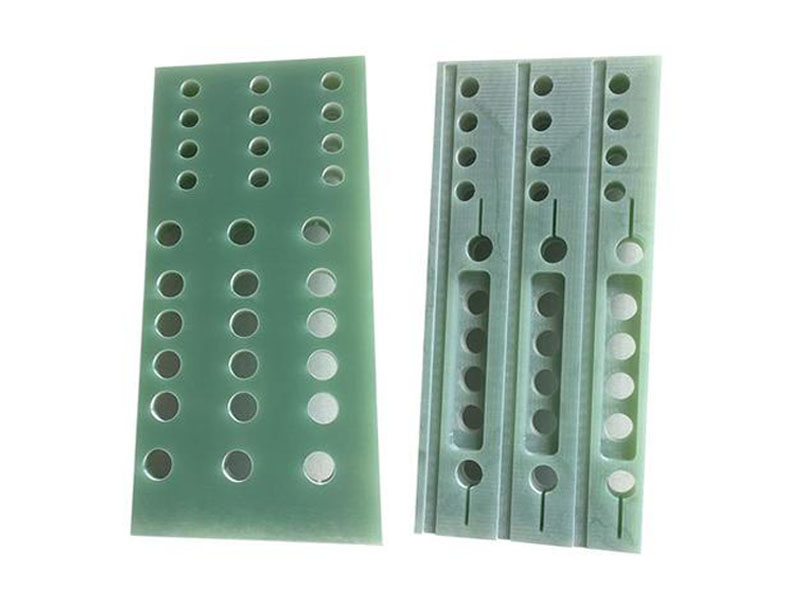

Epoxy board processing products are mainly used in: high and low voltage transformer accessories, aviation electronic and electrical insulation parts, water conservancy and hydropower insulation parts, switch cabinet insulation parts, inverter insulation parts, industrial electric furnace insulation parts, semiconductor insulation parts, electrified railway insulation parts, ships Manufacture of insulating parts, nuclear power insulating parts, and busbar insulating spacers. The processing method of epoxy board is as follows:



1. Drilling

This is a common processing method for PCB circuit board factories. Whether it is PCB testing fixtures or PCB post-processing, they will go through "drilling". Larger PCB factories usually set up their own drilling rooms, which usually contact the fixtures. It is relatively close, and the work in the drilling room is not an easy job, but it is relatively free. Usually the consumables and equipment used in the drilling room are special drilling rigs, drill nozzles, rubber particles, wooden backing plates, aluminum backing plates, etc.



2. CNC

It is commonly called CNC or numerical control, and it is also called a machining center. In fact, they all mean the same thing. The function of the computer gong is very powerful. It is divided into flat and inclined planes (Or called curved surface), the category of bevels is relatively small, and flat computer gongs are very extensive. Small processed parts such as insulating gaskets, insulating rods, and star wheels are all processed by computer gongs to process epoxy boards. The biggest feature of computer gongs is that it is flexible, fast, and powerful. It is currently the best and most commonly used processing method.



3. Slitting

This is the most common and most common processing method on the market. General stores have a cutting machine to cut the plates, and this is usually relatively rough, and the tolerance can be controlled within 5mm.



4. Milling machine

The products processed by this processing method are usually products such as parts, because milling machines and lathes are mostly used for processing hardware parts, but the slow processing speed of ordinary milling machines and lathes is a major feature, so if If you rely exclusively on this epoxy board processing method, the service life will be greatly reduced. However, if you are making a jig, these two types of equipment are necessary.
