GPO-3 fiberglass laminate insulation material, also known as UPGM-203, is a rigid plate-shaped insulation material made of alkali-free glass fiber mat impregnated with unsaturated polyester resin paste and added with corresponding additives through hot pressing.

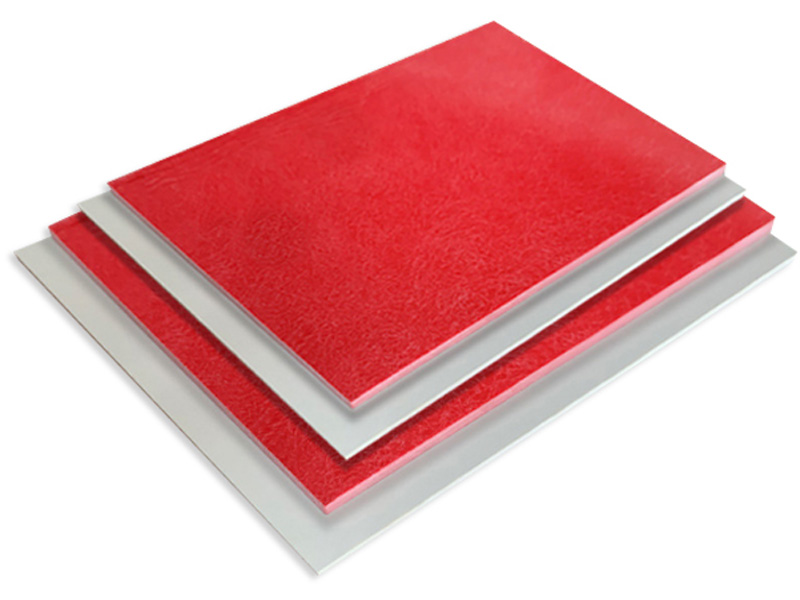

GPO-3 general board specifications: 1200X1000X0.8-100mm, temperature resistance 155 degrees, flame retardant 94-V0, GPO-3 colors: red, white, brown-red,

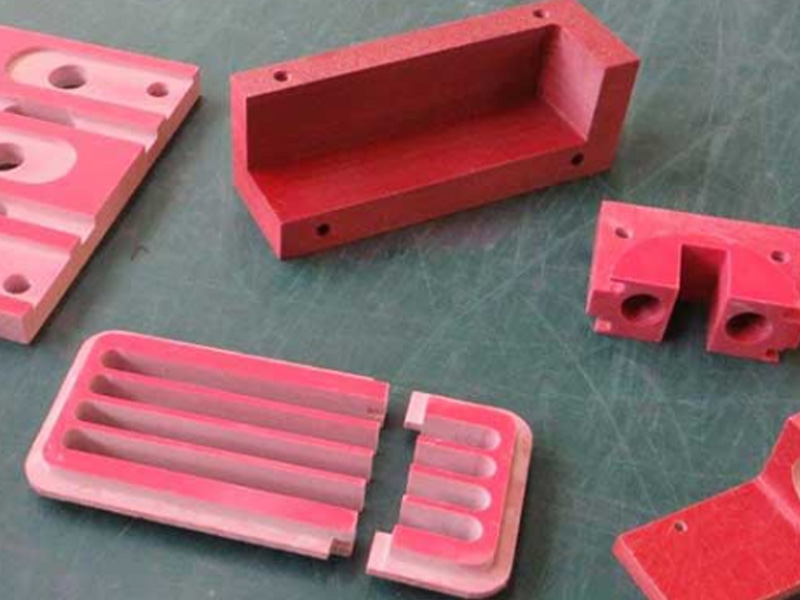

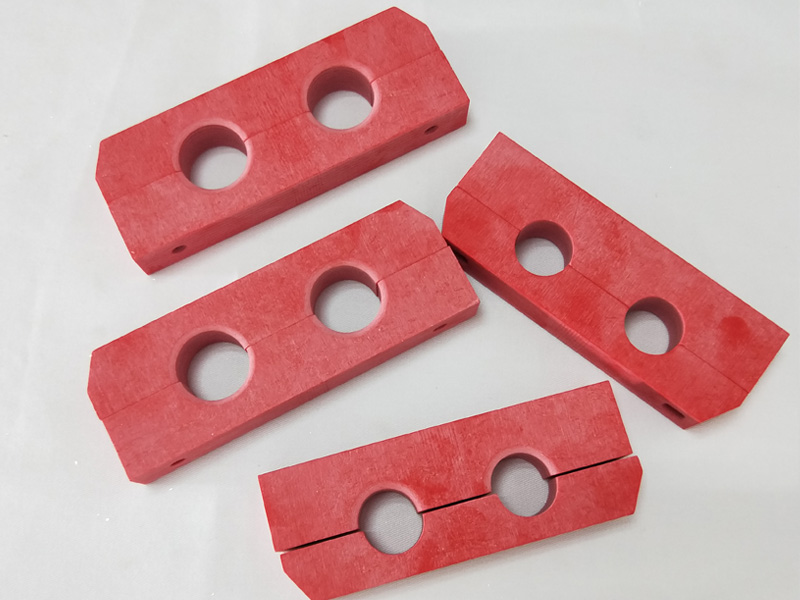

Our company specializes in the production and supply of electrical insulation materials factory, which can cut according to customer requirements, and process special-shaped parts according to drawings.

GPO-3 fiberglass insulation materials are used as insulating structural parts in motors and electrical equipment, such as circuit breakers, switch cabinets, transformers, DC motors, AC contactors, explosion-proof electrical appliances and other low-voltage electrical insulation partitions, automotive industry and other fields.

Features of GPO-3 fiberglass insulation material:

1. Arc resistance (more than 180 seconds)

2. Good anti-leakage tracking (CTI600V)

3. Temperature resistance rating: 155 degrees

4. Flame-retardant 94-V0 level 5 Features such as mechanization, high degree of automation, and stable product quality.
