At present, there are many kinds of epoxy
boards on the market, which are roughly divided into yellow and green. Does the
color of epoxy boards affect performance and quality? What is the difference
between green epoxy board and yellow epoxy board?
The full name of epoxy board is epoxy resin laminate, which is made of electronic grade glass fiber cloth impregnated with epoxy resin.Electronic grade fiberglass cloth is an important basic material in this field, and its main function is reinforcement. Epoxy resin is an important thermosetting plastic, which can be used as adhesive, coating, curing agent, and it is used as a matrix.

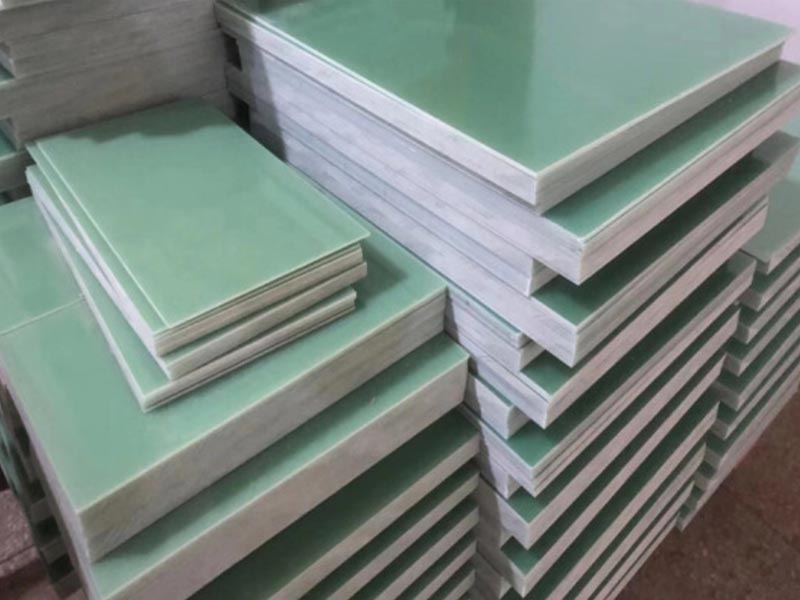

Green epoxy board, the models are roughly
divided into FR4, G10, G11, EPGC, etc., they also have yellow, the color of the
same model does not affect its quality, there is no distinction, their
performance is better than 3240 epoxy board, and 3240 has only one color of
yellow. Green is more expensive than yellow. Take fr4 as an example. The
maximum operating temperature is 150°C. Even if it exceeds a little, there will
be no problem as long as it is in a short time. It has high strength, certain
chemical resistance, and resistance to Friction, light weight, fatigue resistance,
and most importantly, flame retardant.

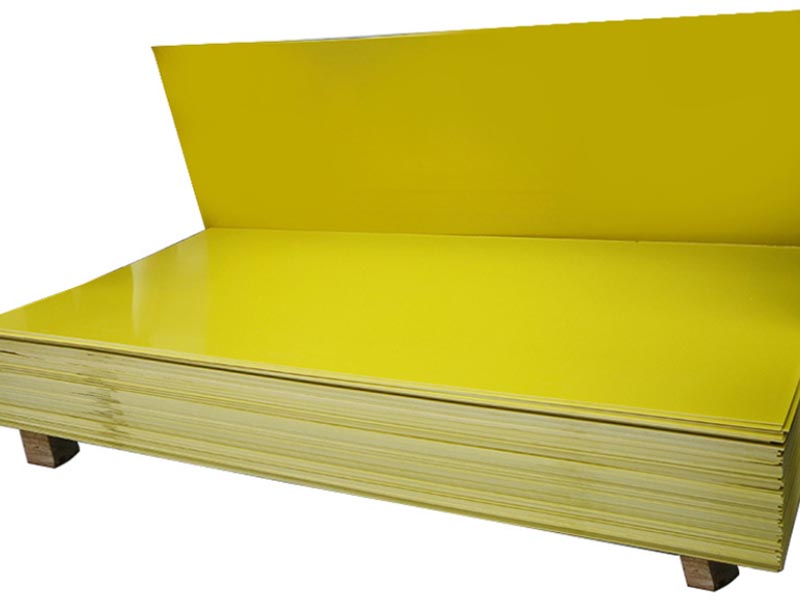

The yellow epoxy board is generally the
3240 model, and its performance will be slightly worse than the green one, but
how to choose a suitable board should also be combined with the needs of the
purchase itself. If the electrical performance requirements are not too high,
the yellow epoxy board can also be used. Its price is much cheaper and the cost
performance is very high. Therefore, whether the green epoxy board or the
yellow epoxy board is better should be combined with the purchase demand to
choose the most cost-effective product.
