High Quality unclad 3240 g10 fr4 material epoxy glass fiber sheet
G10/FR4 Machining：
Fr4/G10 Sheets are electrical alkali-free glass woven fabric base impregnated epoxy resin binder by processing under pressure and heat, which have extremely high mechanical strength, good dielectric properties, good electric strength properties and fine heat and humidity resistance. In addition, it has anti-fire property.
JY Machinery offers Composite Insulating Materials, including 3240, FR4, FR5, G10, G11 epoxy fiberglass sheet, GPO-3, SMC Unsaturated polyester sheet, bakelite sheet,phenolic cloth/paper sheet and various deep processing products. The company has various types of gluding machines, dryers, presses, laser cutters and sanders. Introducing advanced Korean engraving machins and automatic CNC machines. We carry out deep processing of different non-metallic materials according to customers’ pictures, CAD drawing or samples.
Request a Quote today.

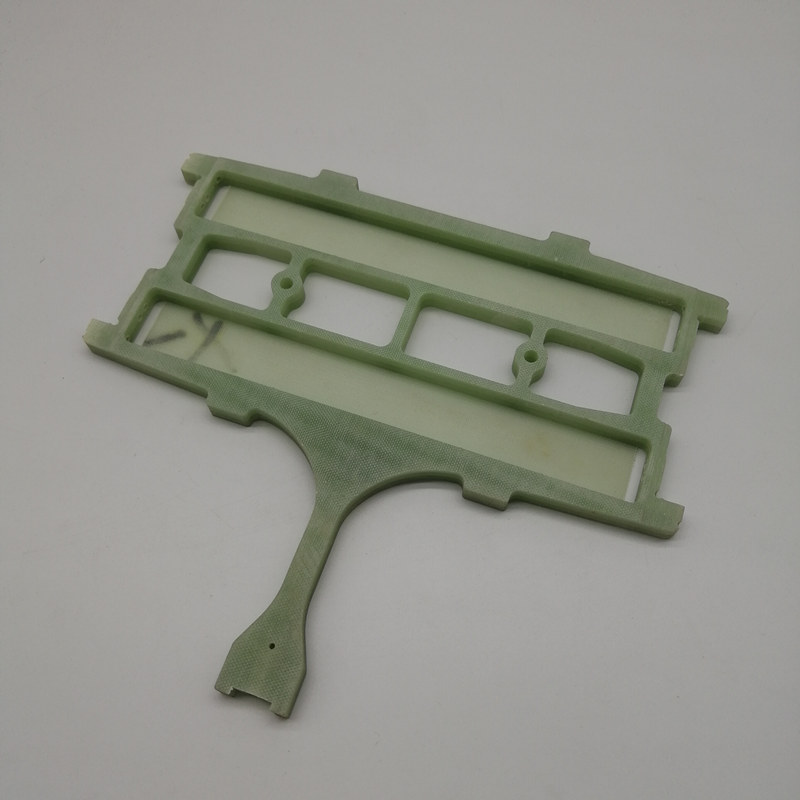

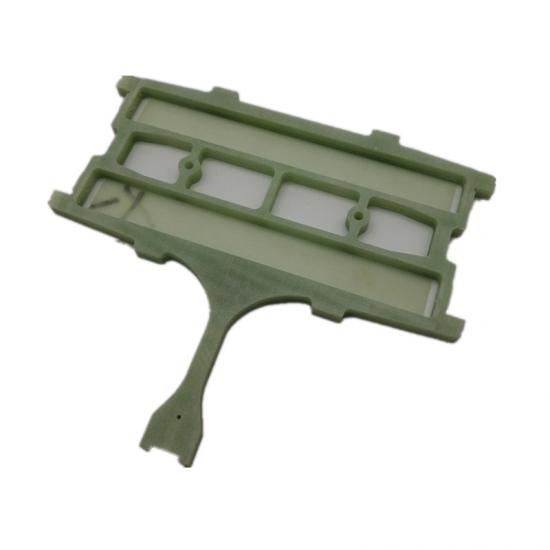

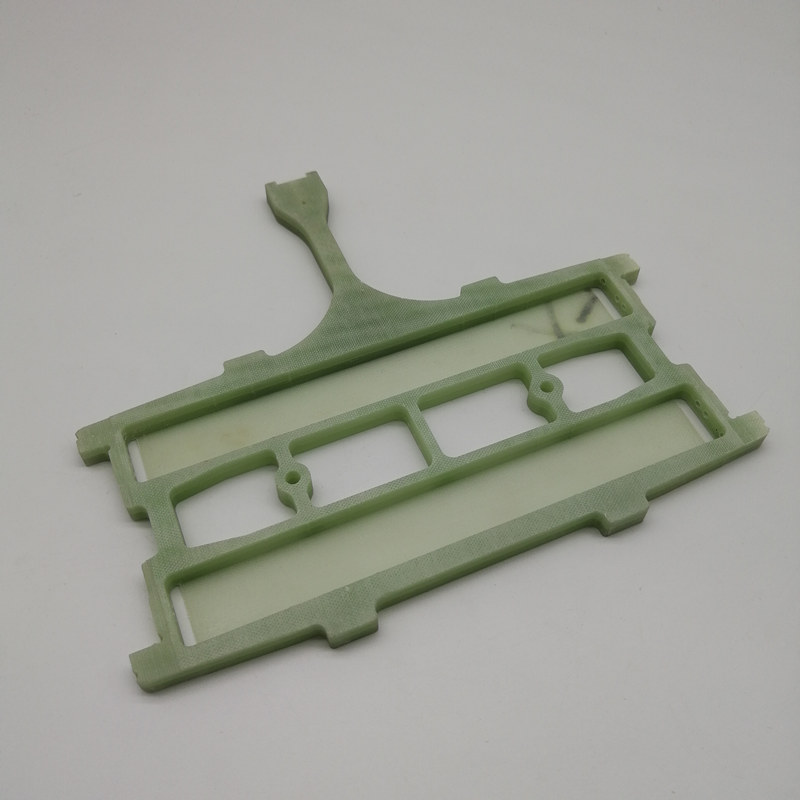

PRODUCT SHOW:
Product Parameter:
|
Material |
Epoxy resin + Glass fiber cloth |
|
Fire Resistance |
UL94 V-0 |
|
Size |
1020x1220mm, 1220x2440mm, 1020x2040mm |
|
Thickness |
0.1-135mm |
|
Temperature resistance |
≥130℃ |
|
Color |
green，yellow，black，orange，white |
|
Warpage |
0.3% mm |
|
ODM |
√ |
|
Item |
Unit |
Result |
|
Voltage Resistance(penetrating) |
KV/mm |
18 |
|
Voltage Resistance |
KV/mm |
12 |
|
Volume resistivity |
Ω*cm |
10 ^6 |
|
Surface resitance |
Ω*cm |
10 ^6 |
|
Compressive Strength(Vertical) |
MPA |
≥350 |
|
Compressive Strength |
MPA |
≥300 |
|
Dielectric constant（50HZ） |
/ |
≤5.5 |
|
Bending strength |
kg/mm2 |
≥340 |
|
Anti-impact intensity |
KJ/ m2 |
≥33 |
|
Density |
g/cm³ |
1.8 - 2.1 |
OUR INSULATION PROUCTS RANGE:
•Epoxy Glass Fiber cloth laminated sheet series环氧玻璃布层压板系列
•Phenolic laminated sheet series酚醛层压板系列
•Polyester Laminated sheets series聚酯板材系列
•SMC/BMC/DMC Molded Parts团状模塑料
•Insulation Rods&Tubes绝缘管棒
•Pultruded Profiles拉挤型材
•Engineering Plastics Parts工程塑胶制品
