Customized Milling FR4 Fiberglass Plate Insulation Spacer for Choke and Inductor Coil

1. FR4 Spacer

2. Customized Size Available

3. With High precision


Products description

Product Parameter:

Place of Origin

Xiamen, China (Mainland)

Size

Standard size 1020*1220mm or customized sizes

Thickness

0.1-12mm

Color

White/ Yellow/ Black/ Light Green

Types of materials

Epoxy glass fiber sheet

Flammability Class

UL 94V-0

Warpage

0.3%

Temperature resistance

150℃

Voltage Resistance

18kv/mm

Surface Resistance

10^6Ω*cm

Volume Resistivity

10^6Ω*cm

Compressive Strength(Vertical)

≥350MPA

Compressive Strength

≥300MPA

Dielectric Constant(50HZ)

≤5.5

Bending Strength

≥340kg/mm²

Anti-impact Intensity

≥33kg/m²

Intensity

1.8-2.1g/cm³

Certifications

ISO9001, SGS, ROHS, UL

Character

High mechanical performance under medium temperature, good electrical performance stability under high temperature, resist to acid and alkali, corrosion resistance.

Application:

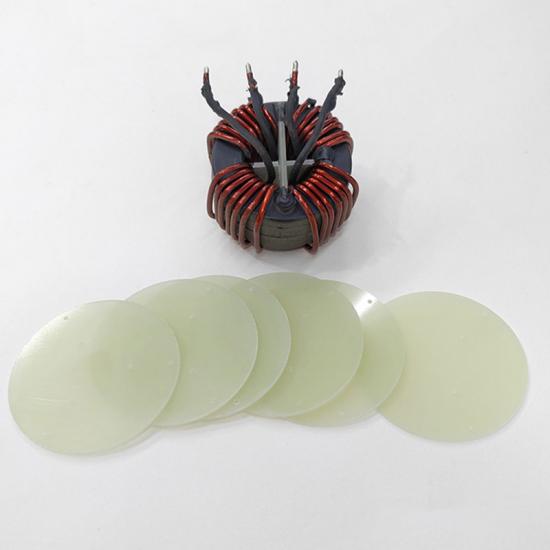

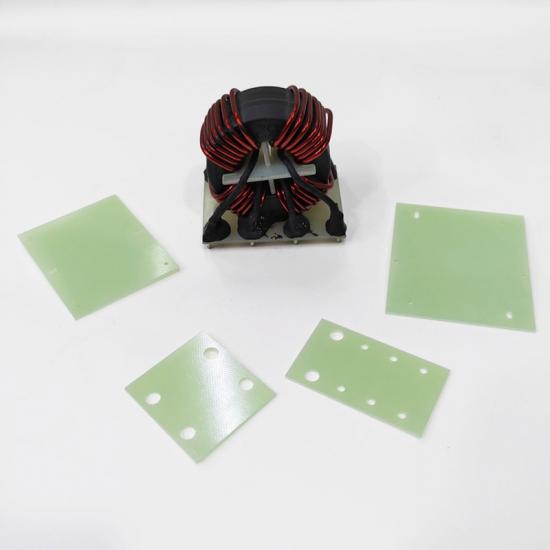

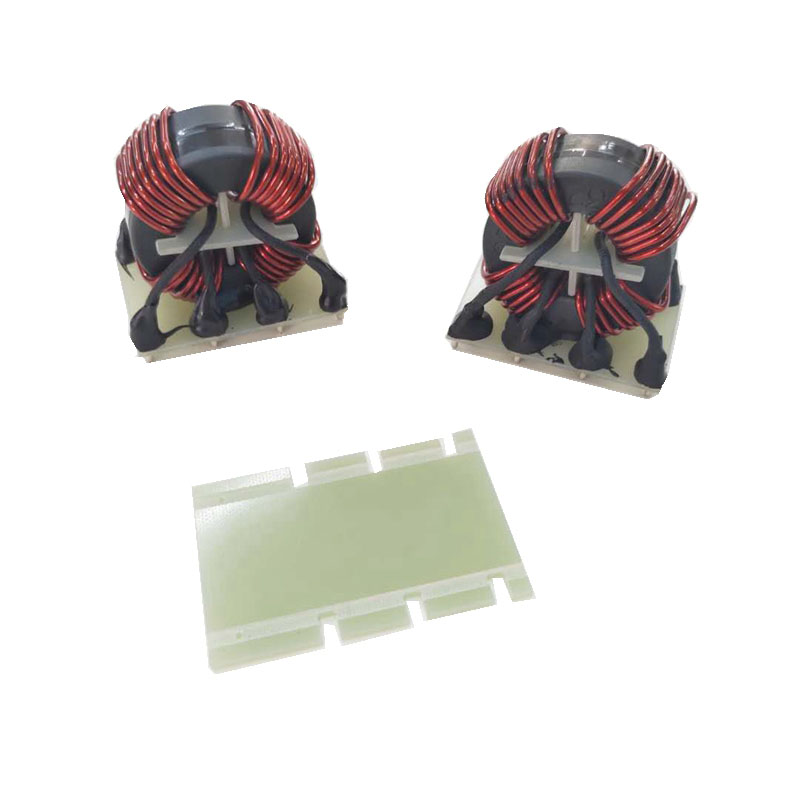

The Milled FR4 plate serves as an insulation spacer for choke and inductor coil.

The common mode inductance is divided into high voltage AC mode and output DC mode. The voltage between the two copper wires determines whether to use the spacer. If the lead string is added and the casing voltage is not high enough, the spacer shall not be added. But considering the consistency, it is more appropriate to have an insulation spacer in bulk production.

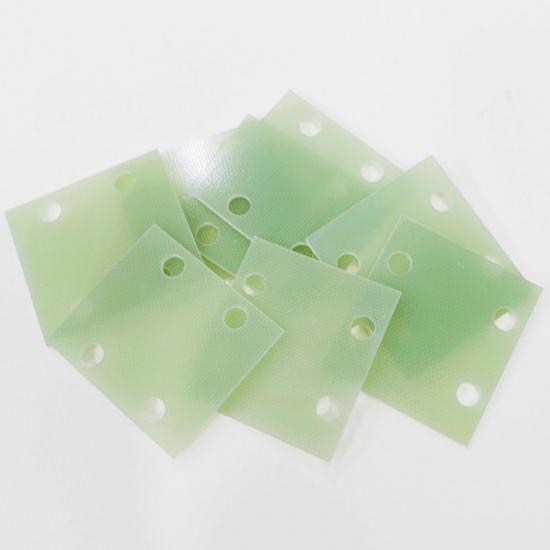

FR4 Fiberglass Spacer
