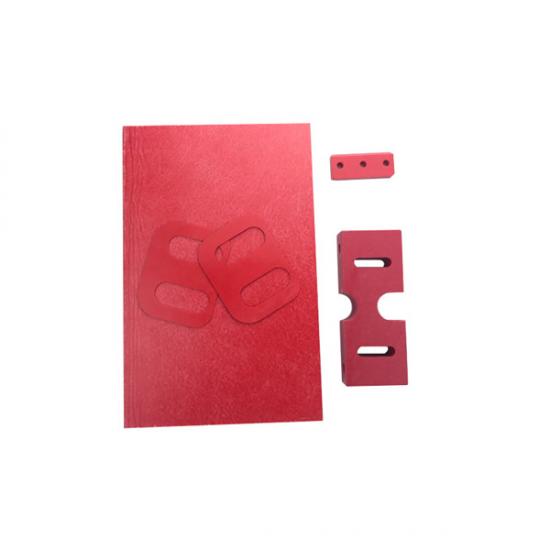

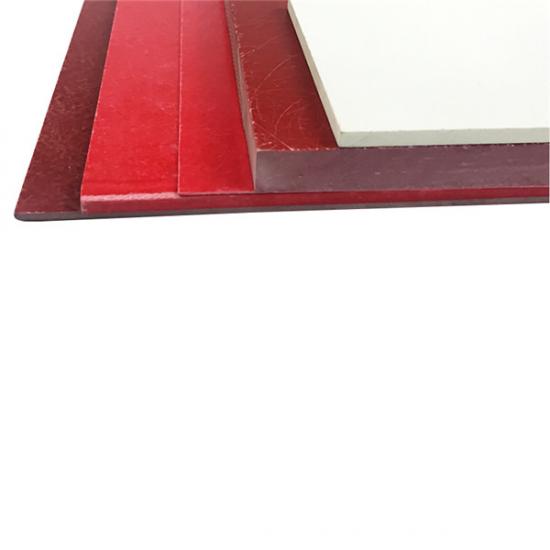

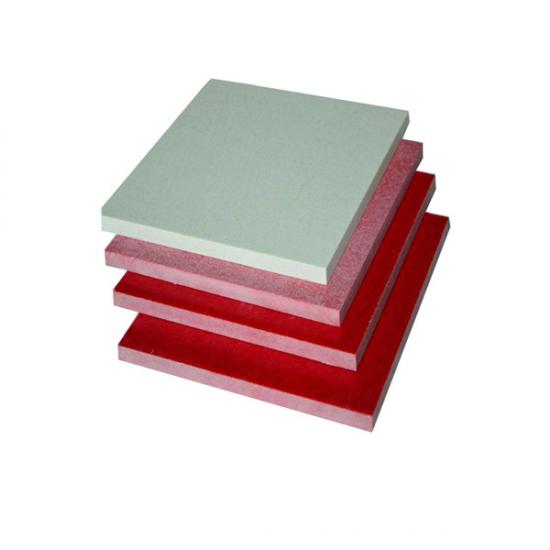

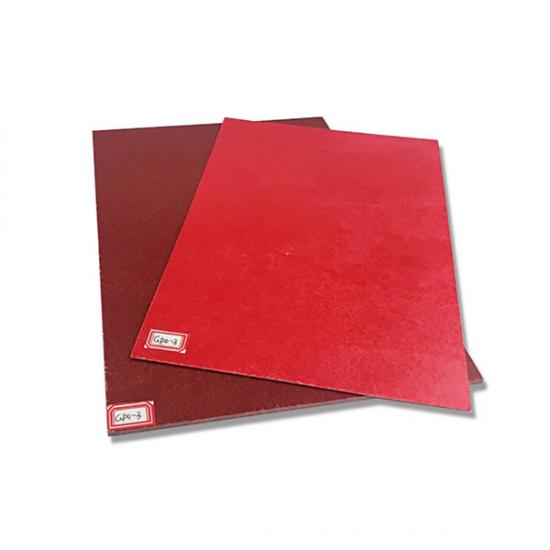

Electrical-Grade GPO 3 Insulation Material

  • Electrical-Grade Fiberglass (GPO3) Sheets
  • Flame Retardant
  • Excellent ark and track resistance
  • Temperature: Up to +130°C continuous
  • High strength and impact resistance
  • Good dimensional stability
Products description

Product Description

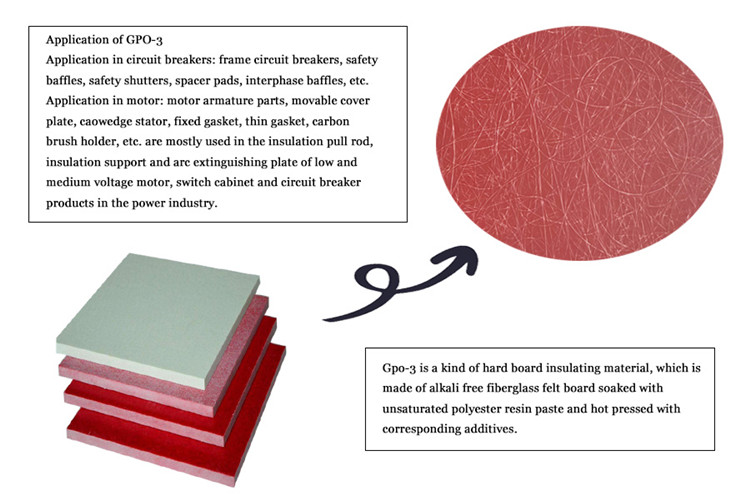

What is GPO-3 material?

GPO3 polyester glass laminate is a glass fiber reinforced thermosetting polyester electrical grade sheet. This composite has application temperatures up to 155°C and offers an excellent combination of high strength and low smoke generation. The material meets the specification requirements of Nema GPO3 and is flame retardant. Due to its extreme strength, dimensional stability and rigidity, GPO3 is easy to process, making it suitable for many applications in the mechanical and electromechanical industries.

Fabrication

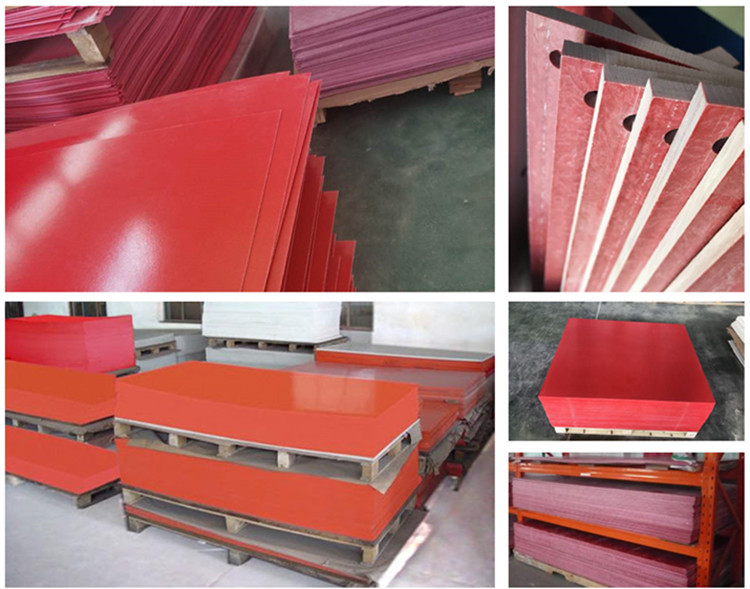

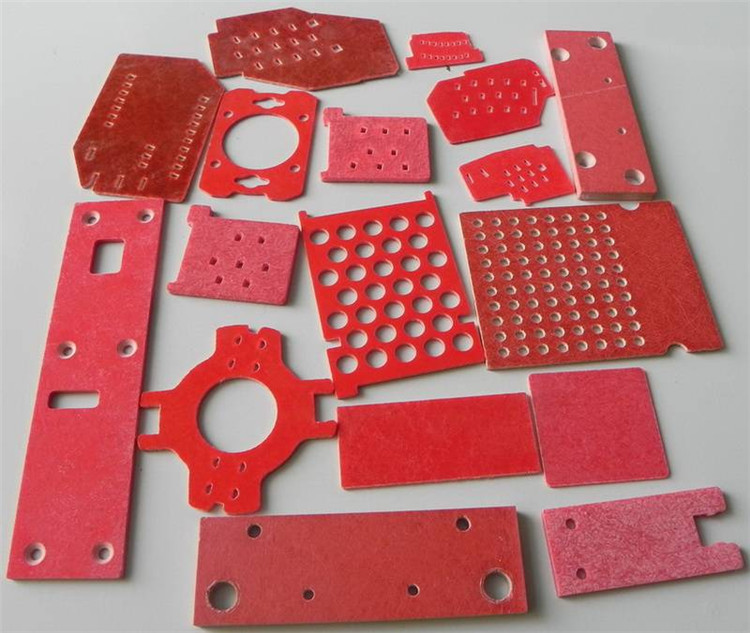

JY offers custom glass polyester (GPO) laminate design, machining, and fabricating for industrial applications. With over 30 years of experience, We have several in-house CNC facilities that allows us to convert this material, including milling, turning, sawing and drilling equipment.Call today to talk with one of our GPO manufacturing experts.

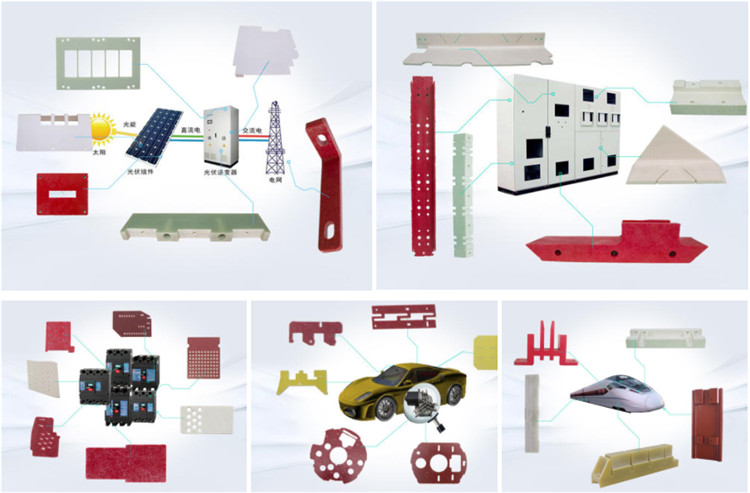

Applications

GPO laminate design parts

Control panel components

Circuit board components

Power generation, transformer, and motor components

Electrical insulating and bus bar supports

Electrical phase and end barriers

Electrical insulation

Switch gears

Angles and channels

The properties of NEMA GPO-3

Grade

JY-GPO3

ANSI (NEMA) Grade NEMA LI-1

GPO-3

Items




Test Method

Unit

Typical Values

Physical Properties


Color


Visual inspection

---


Red/White/Brown/Grey

Specific Gravity

IEC 60893-2:2003

g/cm3

1.95-2.05

Water absorption

ISO62:2008

%

≤0.5

Mechanical properties

Tensile Strength

ASTM D-638

psi x 106

1.7

Compressive strength

ASTM D-229

ksi

33.0

Flexural Strength

ASTM D-229

ksi (MPa)

23

Shear Strength

ASTM D-732

ksi (MPa)

13.0 (90)

Impact strength

ASTM D-229

ft-lb/in
notched

9.3


Electrical properties

Volume Resistivity

ASTM D-257

Ω-cm

1013 - 1014

Surface Resistivity

IEC 60093:1980

Ω

≥ 1.0 x 1012

Electric Strength

ASTM D-229

V/mil

550

Breakdown Voltage-Condition A

ASTM D-229

kV

45

Arc Resistance

ASTM D-229

sec

192

PTI Proof Tracking Index PTI

IEC 60893-2:2003

---

≥600

Dielectric Constant

IEC 60893-2:2003

---

4.0-5.0

Dissipation Factor

IEC 60893-2:2003

---

≤0.03

Thermal properties

Coefficient of Thermal Expansion

ASTME 228-11

1/K

≤2x10-5

Temperature Index

UL 746-B

130

Flame Resistance performance

Oxygen Index

ISO 4589-2:1996

%O2

≥ 30

Flame Resistance

UL 94

Class

V-0

Toxicant(Emission halogen etc.)

E662

---

Low

Other properties

The anti microbial properties of bacteria

G21-G22

---

good

NOTE:THE ABOVE VALUES ARE GIVEN AS REFERENCE ONLY TAKEN FROM AVERAGE TEST RESULTS,AND DO NOT REPRESENT A GUARANTEE ON THE ACTUAL PERFORMANCE OF THE MATERIAL.
