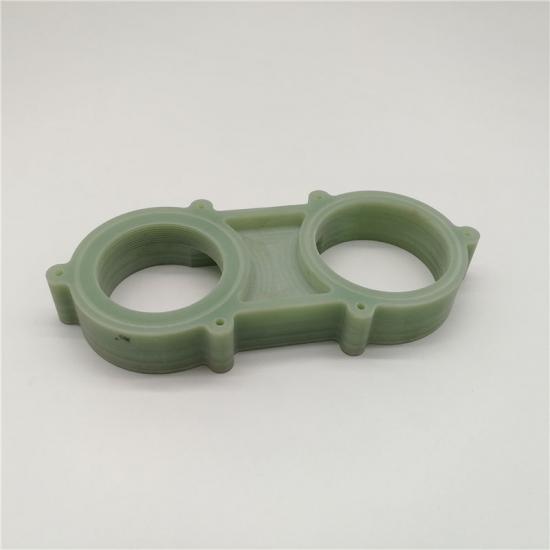

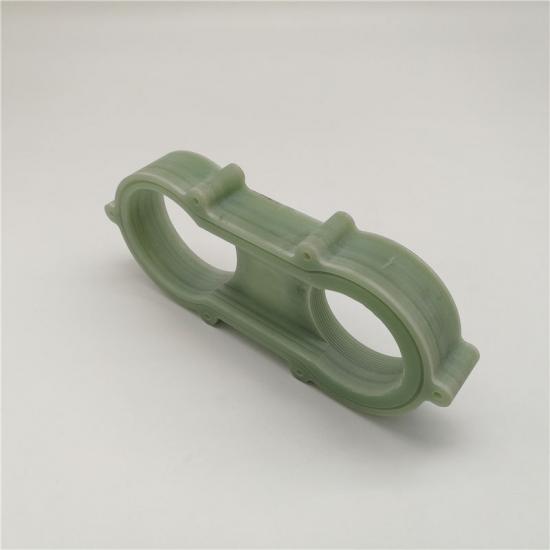

FR4 epoxy resin fiberglass insulation laminated components

Thermoset Rigid Composite materials we can process include epoxy fiberglass laminated(3240, FR4 ,G10,G11,FR5),GPO-3,Phenolic cotton cloth / paper laminate,and so on.

Products description

NEMA FR4 is made of fiberglass reinforced laminate bonded with ame resistant epoxy resin.

The material has the ability to maintain excellent mechanical, electrical and physical properties at high temperatures 130 ℃.



JY Machinery offer a variety of material solutions from rigid glass epoxy composites to high temperature.

The model provides application-specific solutions, shorter lead times, and materials that meet or exceed the customer's most demanding application requirements.

Get a quote today.Excellent customer service, reasonable prices and fast turnaround time.


PRODUCT PARAMETER:

EPOXY GLASS CLOTH LAMINATED SHEET TYPE FR-4


No.

Test Item

Test condition

 Unit

Standard Value

Testing Result

1

Density

ISO 1183

 g/cm3

≥1.70

1.85

2

Moisture Absorption (0.125”)

ASTM D-570

 %

0.15 max

0.10

3


Breakdown Voltage                                        Condition A
(0.062”)                                                Condition D-48/50


ASTM D-149

 kV


45 min
40 min



66
65


4


Permittivity @ 1 MHz                                     Condition A
(0.062'')                                                Condition D-48/50


ASTM D-150

‐‐


5.2 max
5.4 max



4.4
4.5


5


IZOD Strength (0.062”)                                Length-Wise
                                                                     Cross-Wise


ASTM D-229


 ft-lb/in
Notched



7.0 min
5.5 min



13
12


6


Flexural Strength (0.062”)                             Length-Wise
                                                                     Cross-Wise


ASTM D-790

 ksi (MPa)


60.0 (414) min
50.0 (345) min



80 (552)
70 (483)


7

Flexural Modulus (0.062”)                             Length-Wise

                                                                     Cross-Wise

‐‐

 ksi (GPa)

‐‐


2,900 (20)
2,600 (18)


8

Tensile Strength (0.125”)                              Length-Wise

ASTM D-638

 ksi (MPa)

‐‐

62 (430)

9

Compressive Strength, Flat-Wise (0.500”)

ASTM D-695

 ksi (MPa)

‐‐

66 (455)

10


Bonding Strength (0.500”)                             Length-Wise
                                                                     Cross-Wise


ASTM D-229

 Lb (kg)


2000 (907) min
1600 (725) min



2,500 (1,133)
1,900 (862)


11

Shear Strength (punch type, 0.062”)

ASTM D-732

 psi (MPa)

‐‐

21,500 (148)

12

Temperature Index

ASTM D-2304

 ℃

‐‐

130

13

Coecient of Thermal Expansion

ASTM E-228

 '/''℃x10-6

‐‐

15

14

Flammability Rating

UL94

 Class

V-I

V-0

15

Dissipation Factor @ 1 MHz                           Condition A

(0.062”)                                                Condition D-48/50

ASTM D-150

 ‐‐


0.025 max
0.035 max



0.014
0.015


16

Dielectric Strength (Condition A)

ASTM D-149

 V/mil

‐‐

635

17

Arc Resistance (0.125”)

ASTM D-495

 Sec

‐‐

140

18

Comparative Tracking Index (0.125”)

ASTM D-3638*

 V

‐‐

230

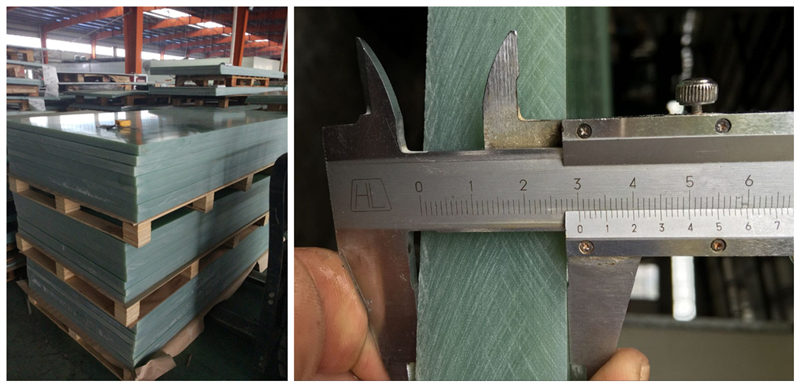

PRODUCT SHOW:

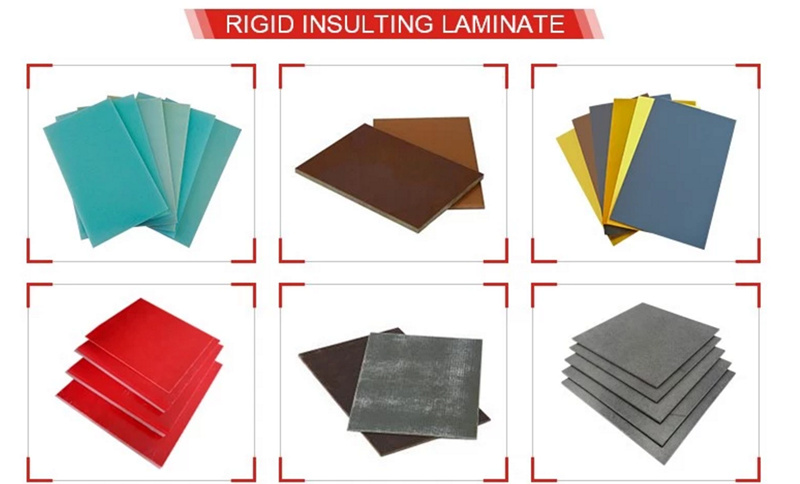

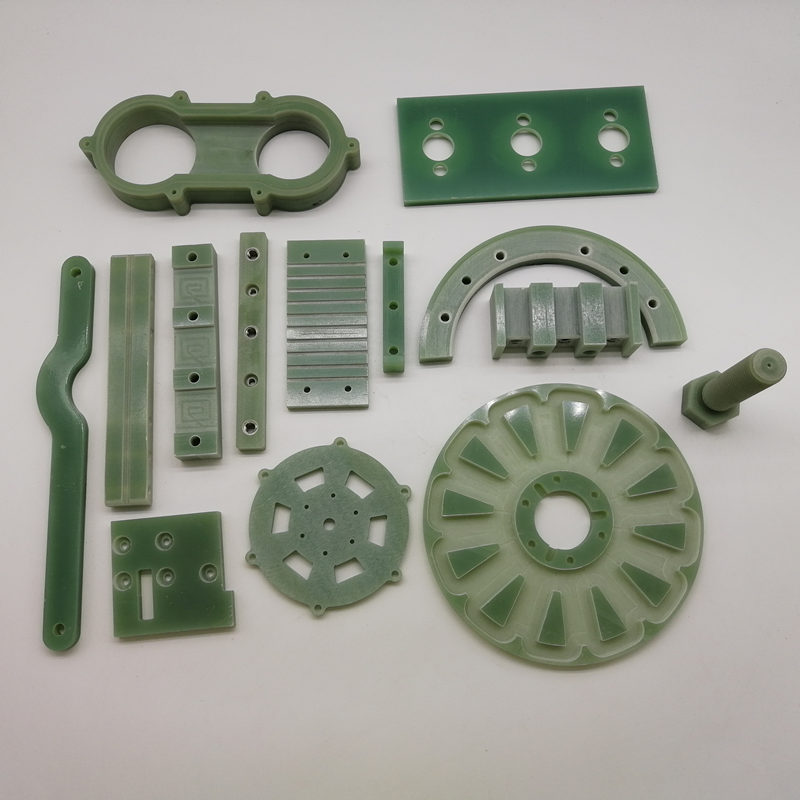

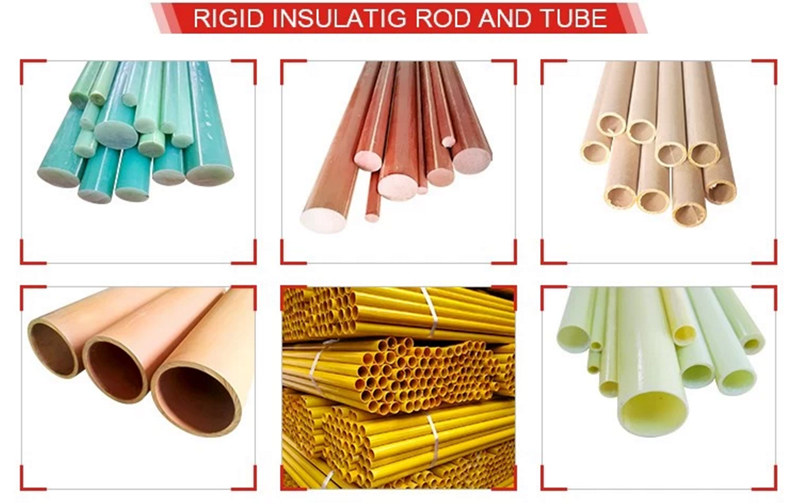

OUR PROUCTS RANGE:

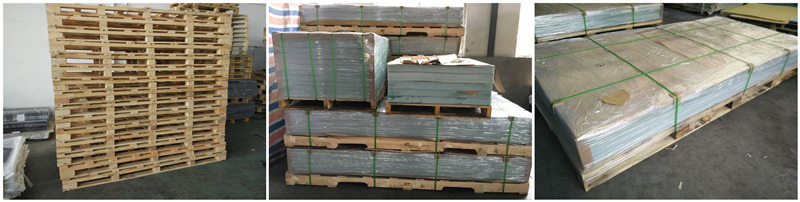

PACKNG&DELIVERY:




FAQ:

1. Q: Are you a factory or trading company?

A: We are a manufacturer with export license.



2. Q: How about your deliver time?

A: It generally needs about 5-15 days, also depends on the quantity.



3. Q: What is your MOQ?

A: It depends on the products size, and quantity.



4. Q: Can you provide sample?
A: Sample is available, the freight collect.



5. Q: Can we customize the size of product?

A: Yes, we can produce the product as your request.
