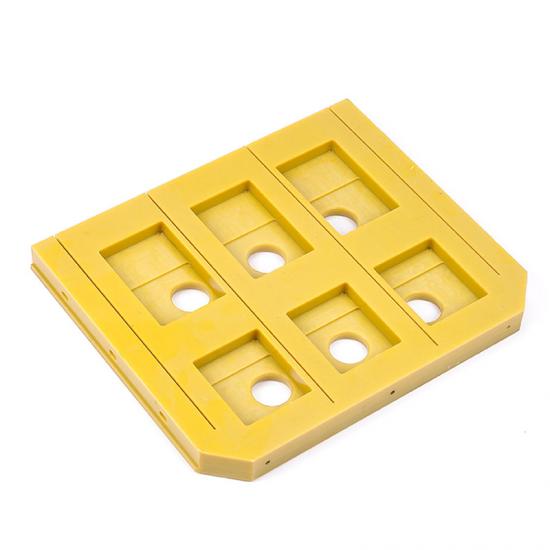

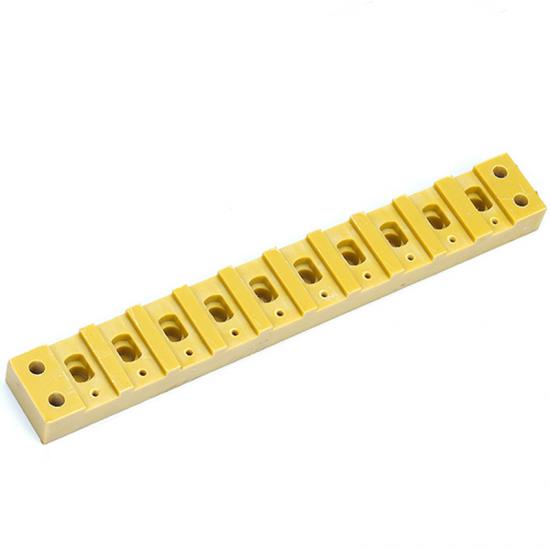

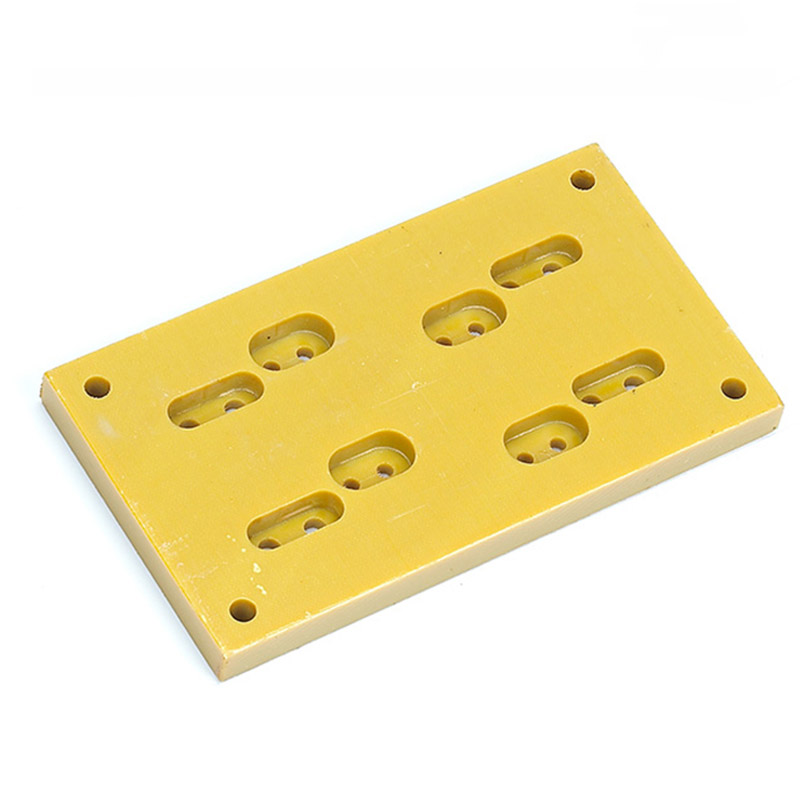

Product Show:
Product Specification:
|
Item |
Unit |
Typical Values |
|
|
Physical properties |
Color |
/ |
Green /yellow |
|
Special gravity |
G/cm³ |
2.1 |
|
|
Water absorption |
% |
＜0.3 |
|
|
Electrical properties
|
Electric strength |
KV/mm |
≥14 |
|
Breakdown voltage |
KV |
≥60 |
|
|
Volume resistivity |
Ωm |
≥1.0×1012 |
|
|
Surface resistivity |
Ω |
≥1.0×1014 |
|
|
Dielectric constant |
/ |
4.0-5.5 |
|
|
Dissipation factor |
/ |
0.04-0.05 |
|
|
Proof tracking index (PTI) |
V |
≥200 |
|
|
Insulation resistance after immersion 24 hours in water |
Ω |
≥5×1010 |
|
|
Mechanical properties |
Flexural strengthen |
MPa |
≥340 |
|
Charpy impact strengthen |
KJ/m² |
≥60 |
|
|
Tensile strengthen |
MPa |
≥300 |
|
|
Bond strengthen |
N |
≥8000 |
|
|
Compressive strength |
MPa |
≥350 |
|
|
Flame resistance properties |
Flame resistance |
℃ |
V-0 |
|
Temperature index |
/ |
155 |
|
|
Toxicant content |
Min |
Low |
|
|
|
High precision for the tolerance Excellent fire retardant Excellent voltage resistance Excellent water resistance Excellent heat resistance Excellent thermal impact resistance Excellent mechanical processability & automation processing |
||
1. Backing plate: PCB drilling forming machine, plastic mold, injection mold, drilling machine, injection molding machine, motor, table top grinding
2. Test fixture PFC reinforcement board
3. Needle plate, carrier board and insulated electronic products
4.3mm or less of raw materials used for PCB flexible circuit board testing and processing
5. Bars are mainly used as insulation parts for electrical and electronic equipment.
6. The base of the soft bag is covered with fabric, leather, etc., to make beautiful wall and ceiling decoration.
Workshop:
Inspection equipment:
Packaging & Shipping:
