1. Production process: cast sheet and extruded sheet;

2. Transmittance: transparent board, semi-transparent board (including dyeing board and transparent board);

3. Performance: impact-resistant board, anti-ultraviolet board, color board (including black and white and color board), ordinary board and special board (such as high impact board, flame retardant board, frosted board, metal effect board, high wear-resistant board and Light guide plate).

4. Classification of materials, mainly in China: imported boards, Taiwan-funded boards, and domestic boards. Their difference lies in the origin and (MMA) purity of the raw materials used. This is also the key to determining the quality and price of the board.

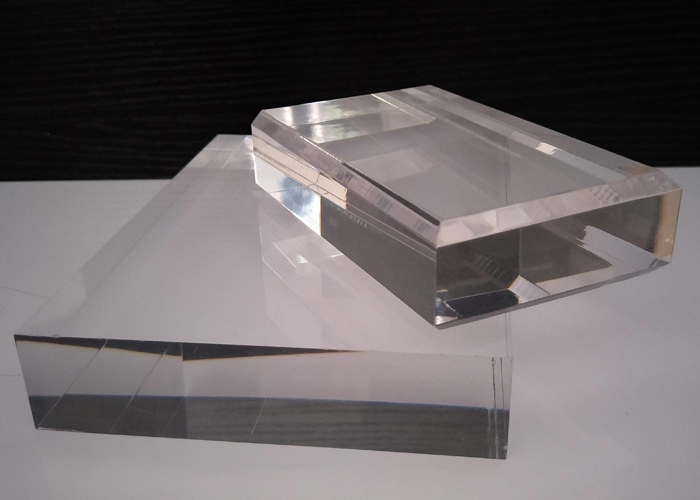

Acrylic (PMMA) Casting sheet characteristics

The casting sheet has higher molecular weight, more rigidity, crack resistance, and excellent chemical resistance, so it is more suitable for processing large-size identification plaques and acrylic control panels for household appliances. In addition, the casting process is more suitable for the production of small batches of different color sheets. It has incomparable flexibility in the color system and surface texture effects, and the product specifications are complete, which can be used for various special purposes.

The thickness tolerance of the casting sheet is generally within ±0.30mm.

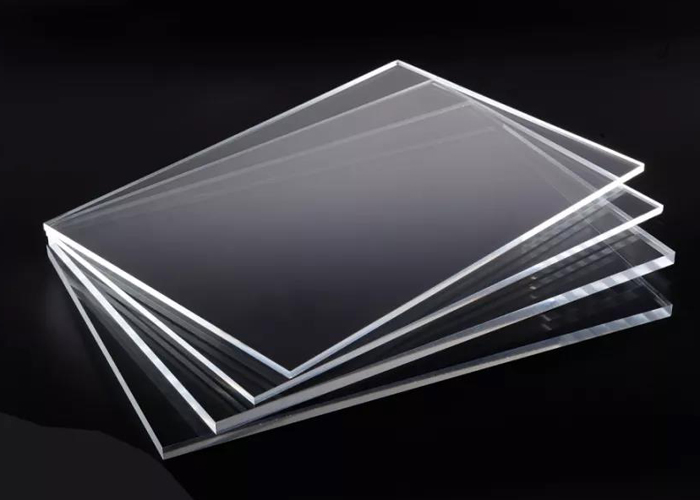

Acrylic (PMMA) Extruded sheet characteristics

The extruded sheet has low molecular weight and high flexibility, and is suitable for vacuum suction molding. The extrusion process can better control the thickness of the sheet, and the thickness tolerance is smaller than that of the cast board. Because extruded sheets are mass-produced automated production, the color and specifications are inconvenient to adjust, so the variety of product specifications is subject to certain restrictions. Due to the low molecular weight of the polymer, the mechanical properties, heat resistance, and solvent resistance are inferior to the cast-molded profile, and its advantage is high production efficiency. It is suitable for the production of a large number of acrylic touch panels for home appliances.

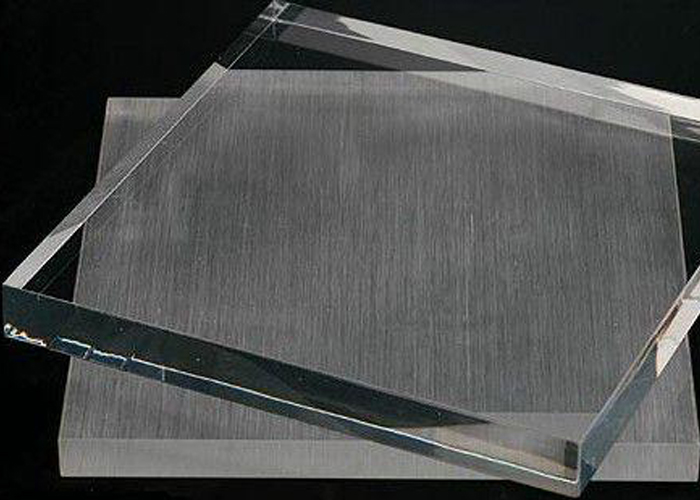

Acrylic sheet specifications and thickness

Specifications: 1220*2440mm, 1220*1830mm, 1250*2500mm, 2000*3000mm.

Thickness: 0.5mm-50mm, the thinnest thickness of the casting sheet can usually only be 2.0mm or more, while the thickness of the extruded sheet can be 0.5mm, or even 0.3mm.
