Insulating fixture is a device used to fix the processed object in the process of mechanical manufacturing so that it occupies the correct position to accept construction or inspection. Also known as clamps. Broadly speaking, in any process in the process, the device used to quickly, conveniently and safely install the workpiece can be called a fixture. For example, welding fixtures, inspection fixtures, assembly fixtures, machine tool fixtures, etc. Among them, machine tool fixtures are the most common, often referred to as fixtures for short. When processing a workpiece on a machine tool, in order to make the surface of the workpiece meet the technical requirements of the size, geometric shape and the mutual position accuracy of other surfaces specified in the drawing, the workpiece must be installed (positioned) and clamped (clamped) before processing.

The fixture is usually composed of a positioning element (to determine the correct position of the element in the fixture), a clamping device, a tool setting guide element (to determine the relative position of the tool and the workpiece or guide the direction of the tool), an indexing device (to enable the workpiece to be installed in one installation) To complete the processing of several stations, there are two types of rotary indexing device and linear moving indexing device), connecting elements and clamp concrete (fixture base).

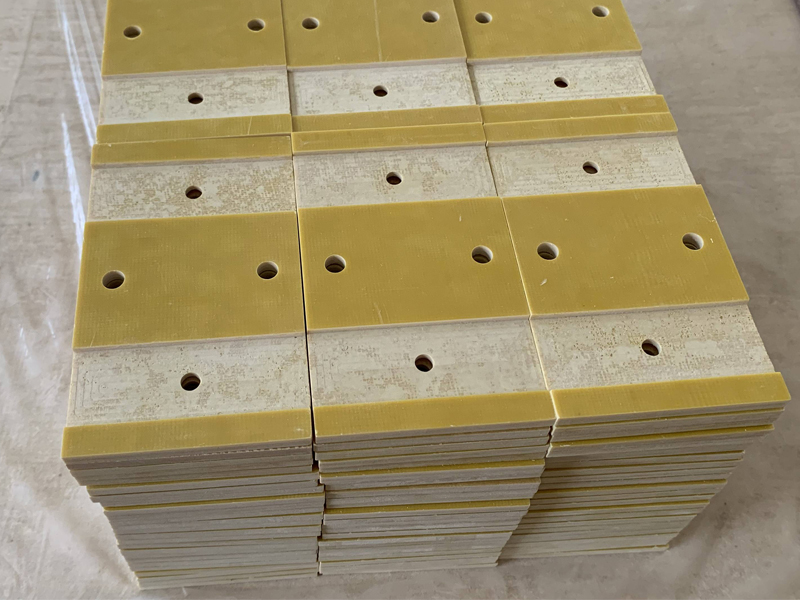

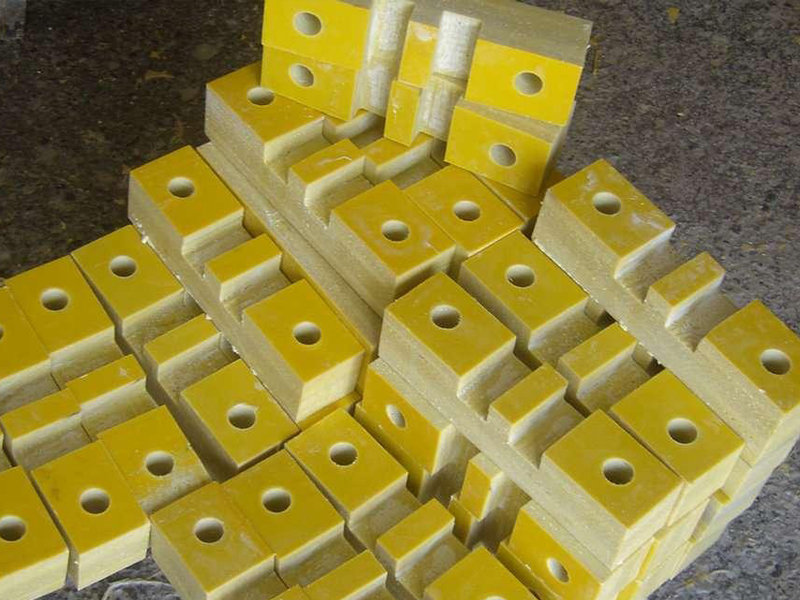

It is made of epoxy resin and glass cloth, model 3240, with high mechanical performance at medium temperature and stable electrical performance at high temperature. It is suitable for high-insulation structural parts for machinery, electrical appliances and electronics, with high mechanical and dielectric properties, good heat resistance and moisture resistance.

Get your CNC machining Insulation fixture started today

When you send out 3D CAD documents to us, JY Machinery will provide you with instant price, on-demand delivery time, as well as design for manufacturability comments for your customized CNC machining components on materials and also producing process, to make sure that the component can meet your expectations as well as budget plan demands.

Get in touch with us today for a free quote!
