Product Description
G-10 Epoxy Glassmade from electrical alkali-free glass woven fabric base impregnated an epoxy resin binder by processing under pressure and heat, which have extremely high mechanical strength, good dielectric loss properties and good electric strength properties.
Widely used as insulating structural parts in electrical & mechanical equipment, such as generators, motors, transformers, terminal boards, PC boards, washers, and many others.

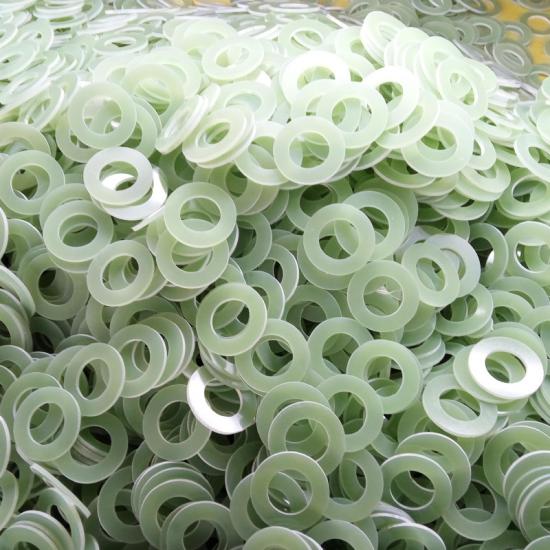

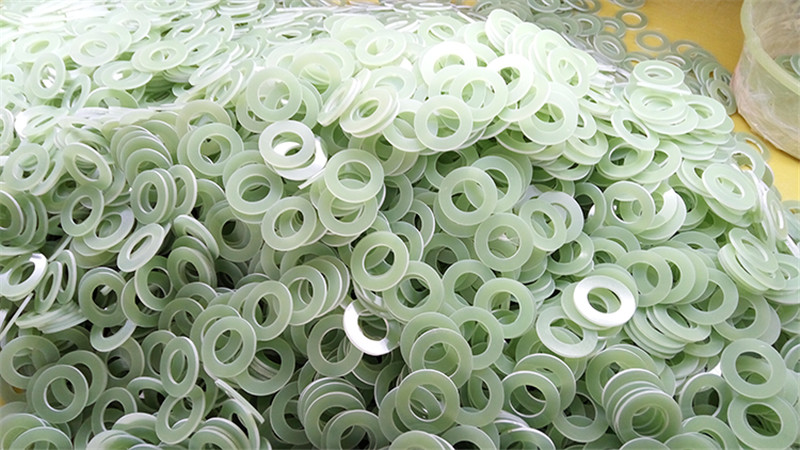

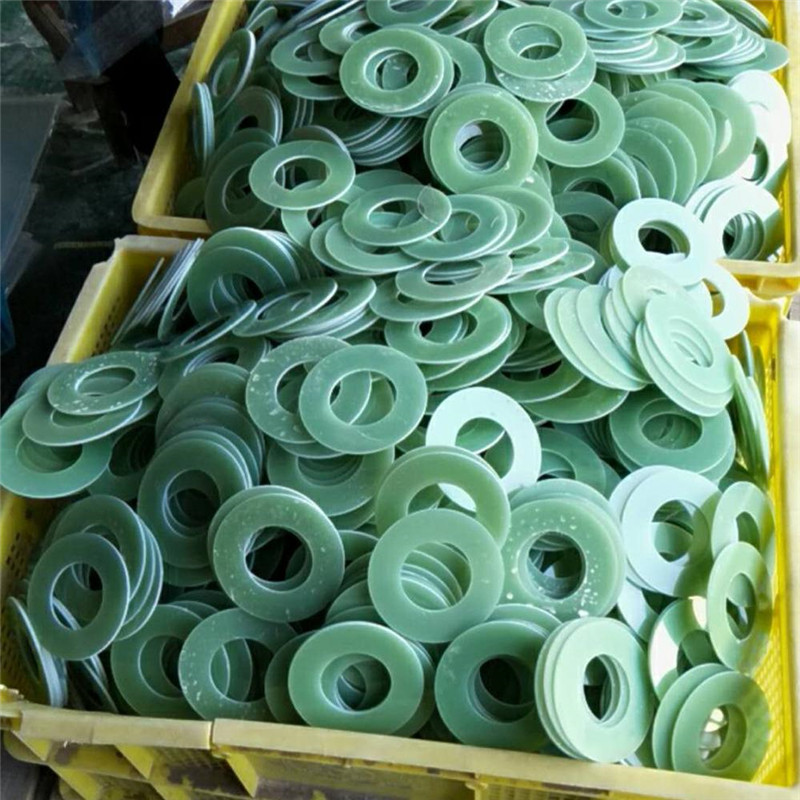

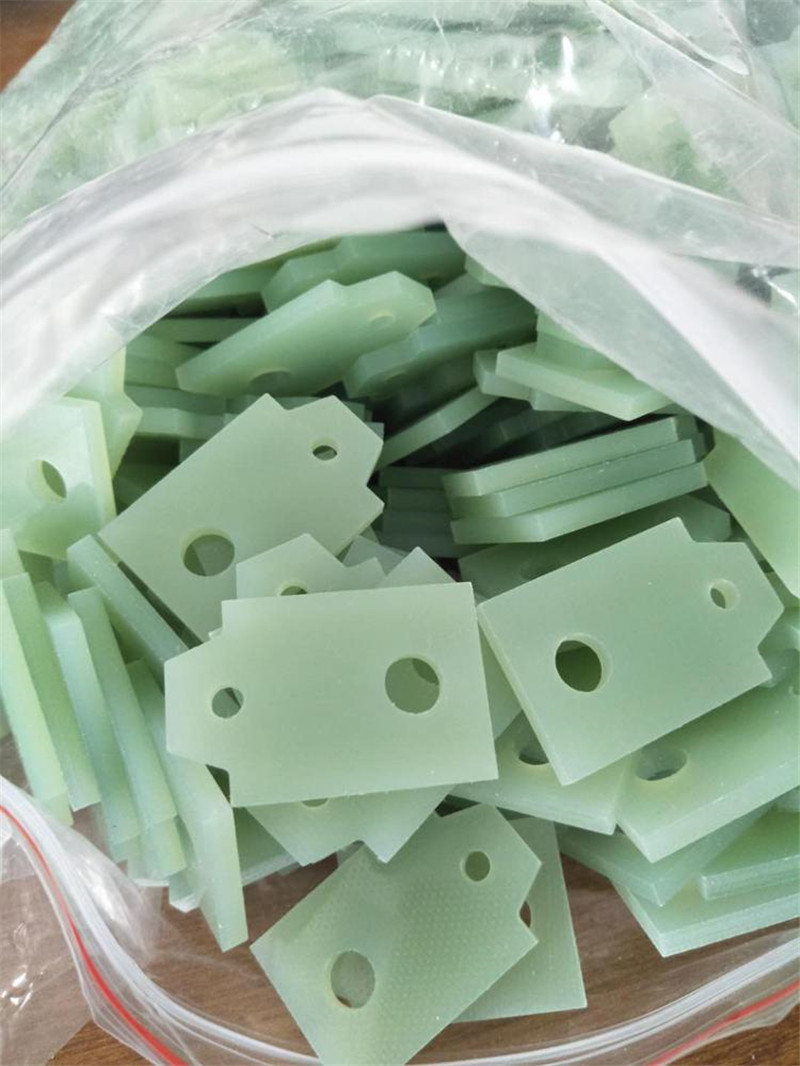

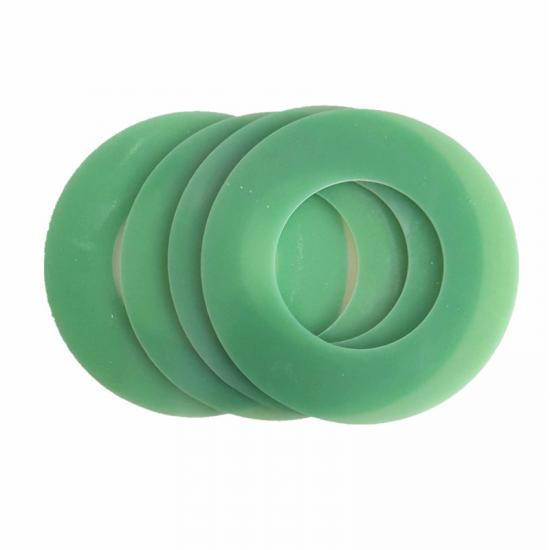

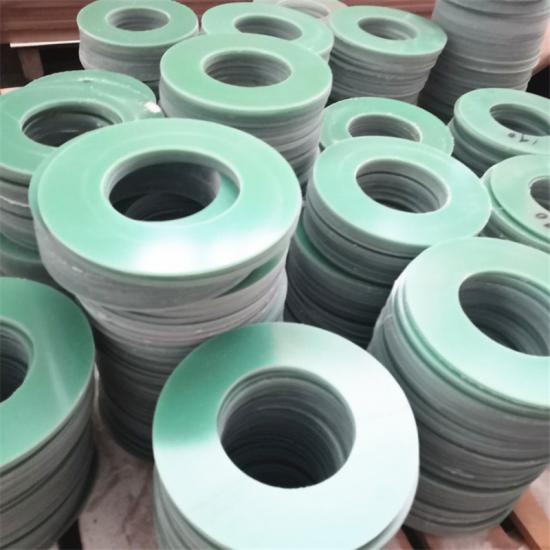

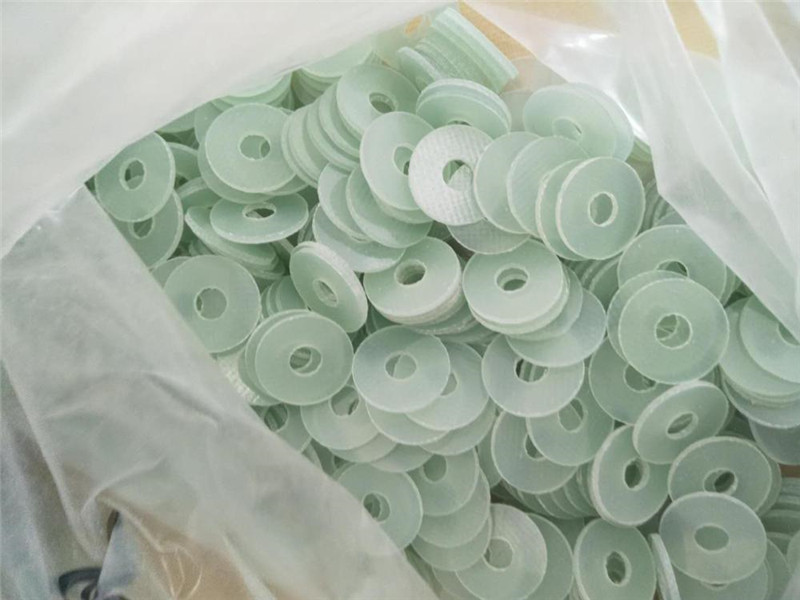

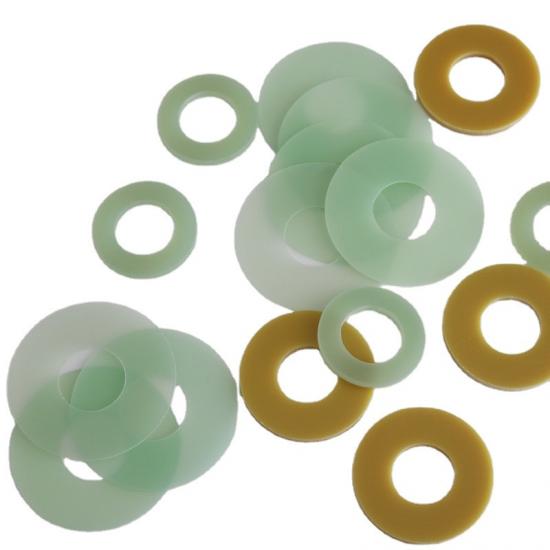

JY Machinery is a custom manufacturer for FR4 G10 G11 glass reinforced epoxy plastic laminates in the forms of sheet, rod and tube.we are able to offer insulating washer / gasket machined service,Capabilities include 4 and 5-axis machining, CNC turning, milling, drilling, tapping and stamping.G-10 Glass Epoxy Washers are available in standard bolt sizes or cut to your size.
If you are interested,Please contact us for more details.
Advantages:
*High mechanical & electrical strength
*Excellent rigidity & dimensional stability
*Good dielectric properties
*Low water absorption
*Flame resistance (Type: FR-4)
*Tighter thickness tolerance
*Flat and straight panel
*Smooth and clean surface.
*Easy to machine
Specifications:
1) Grade: G10/FR4
2) Color: Natural Green; Yellow; Black
3) Thickness range: 0.1mm~200mm
4) Sheet size:1020*1220mm; 1020*2040mm; 1220*2440mm
FAQ
1)How strong is G10 material?
G10 is frequently made use of for underwater applications as a result of its toughness, durability, and very waterproof residential properties. According to Accurate Plastics technological data for G10, the tensile toughness of G10 actions in at 40,000+ PSI lengthwise and at 35,000+ PSI crosswise.
2)Is G10 toxic?
No, it's not hazardous as all if just for daily use, however when producing this material, the really tiny particles produced by working G10 can work its way deep right into your lungs and damage the delicate tissues creating scarring over time.
3)What temperature does G10 melt?
G10 service temp is 284F, G11 is 329F. And they do notmelt they simply char.
