Manufacturing Customized Size Insulation Material FR4/G10 Washer Gasket

1. Used as a spacer between components.

2. Different washer styles fit a variety of application and installation requirements.

3. Protect fasteners from electrical currents, while a lock washer offers additional security in an assembled workpiece.



Products description

Product Show:

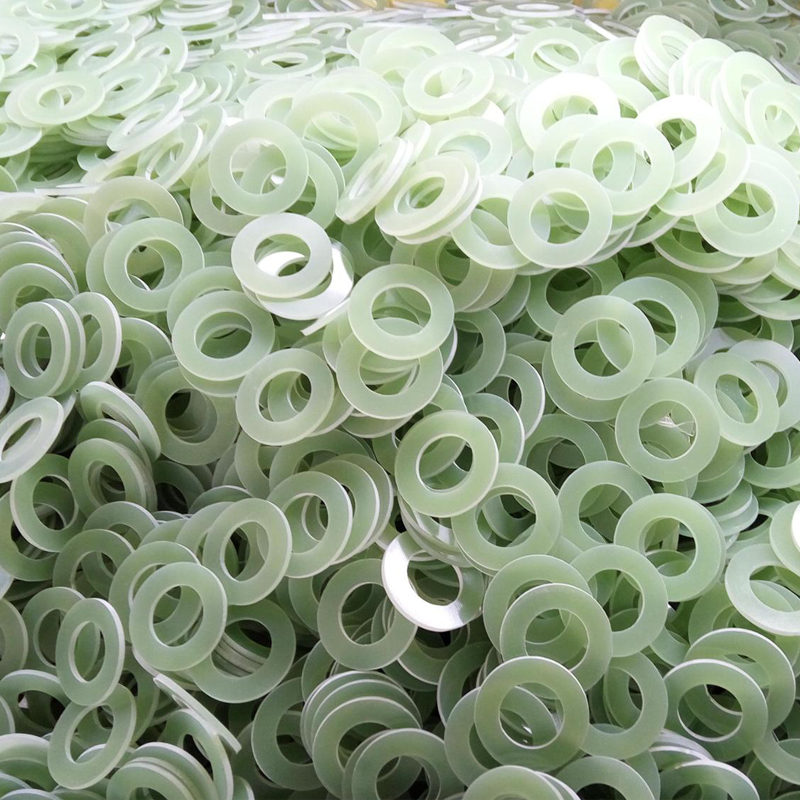

G10 Insulation Washer

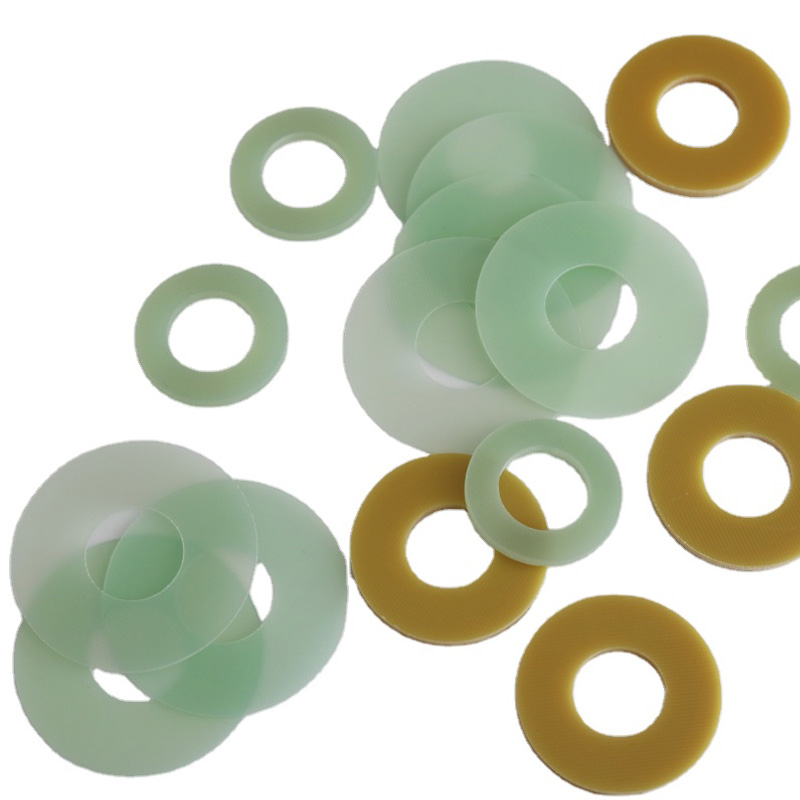

Insulatiing Washer

Properties and Characteristics:

The material properties of G10 / FR4 make it an excellent laminate for applications requiring a minimum thickness of 0.005 ".Its superior electrical properties are consistent at both temperature and humidity levels.Meet the requirements of mil-i-24768/28 geb-f.

G10 / FR4 has the highest insulation strength of any phenolic resin we use - up to 500 v/m.It also provides 70,000 PSI of bending strength, good bonding strength and impact resistance, and low water absorption and dissipation.
Our products are naturally green, although we can also order them in other colours


Epoxy Based Fiberglass Resin FR4 Epoxy Precision G10 CNC Machined Part is woven fiberglass soaked in an epoxy resin and then compressed and baked. It is very dense, lightweight, and impervious to water. The advantages of this material:

  • Strong, stiff, tough and durable
  • Excellent dielectric strength
  • Good machinability
  • Light weight
  • Heat and water resistant
  • Corrosion and chemical resistant
  • Good mechanical strength
  • Excellent wear properties
  • Good dimensional stability
  • Low moisture absorption
  • Excellent creep resistance

JY Machinery has sufficient stock of the fiberglass epoxy sheet due to its widely applications, to meet fast delivery for our clients


Product Parameters:

Item:

Unit

Result

Density

g/cm³

1.9

standard color



yellow, green

Fire Retardancy Grade:

--

UL94-V0

Flame Resistance:

°C

170-180

Voltage Resistance(penetrating)

KV/mm

18

Voltage Resistance

KV/mm

12

Arc Resistance

S

60-80

Volume resistivity:

Ω*cm

10 ^6

Surface resitance:

Ω*cm

10 ^6

Compressive Strength(Vertical):

MPA

≥350

Compressive Strength

MPA

≥300

Anti-impact intensity

KJ/ m2

≥33

Bending strength

kg/mm2

≥340

Dielectric constant (1MHz) :

/

5.4

Adhesive strength:

kg

700-900

Compressive strength(Horizontal):

kg/mm2

20-24

Water absorption rate:

%

0.07-0.12



thickness/mm

tolerance/mm

thickness/mm

tolerance/mm

0.2-0.3

± 0.02

20

± 0.5

0.4-0.7

± 0.03

25-30

± 0.6

0.8-1.2

± 0.05

35-40

± 1

1.5-2

± 0.1

40-100

± 1.5

3-6

± 0.2





8-12

± 0.3





15

± 0.4





Main Application:


With high mechanical strength, Insulation, heat resistance, electrical properties and good moisture resistance properties. Widely range of applications, for example: Suitable for using as insulating structural parts in electric equipment, such as electric generators, motors, switch board, pcb , etc.
