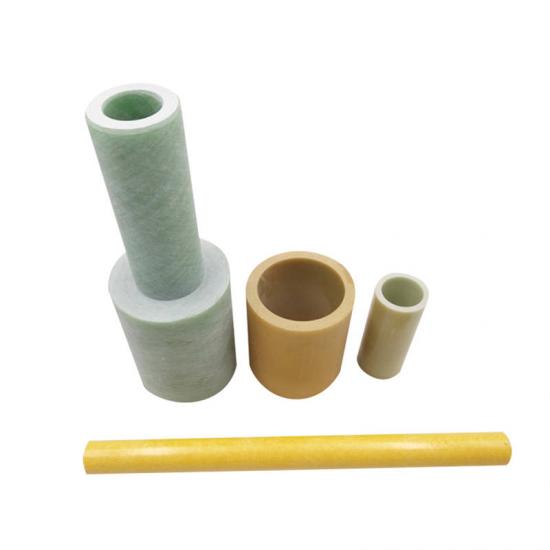

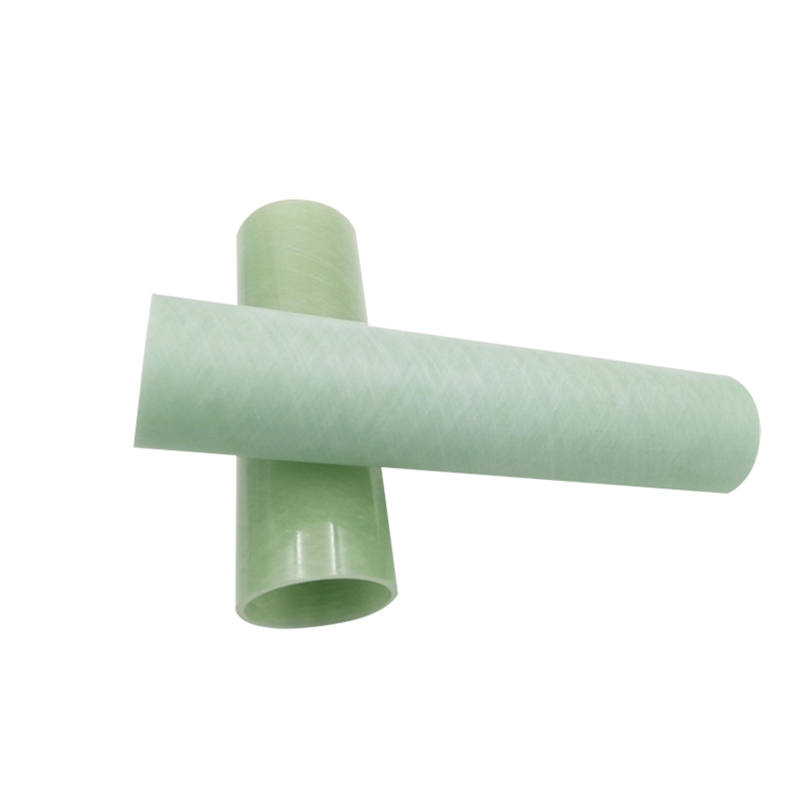

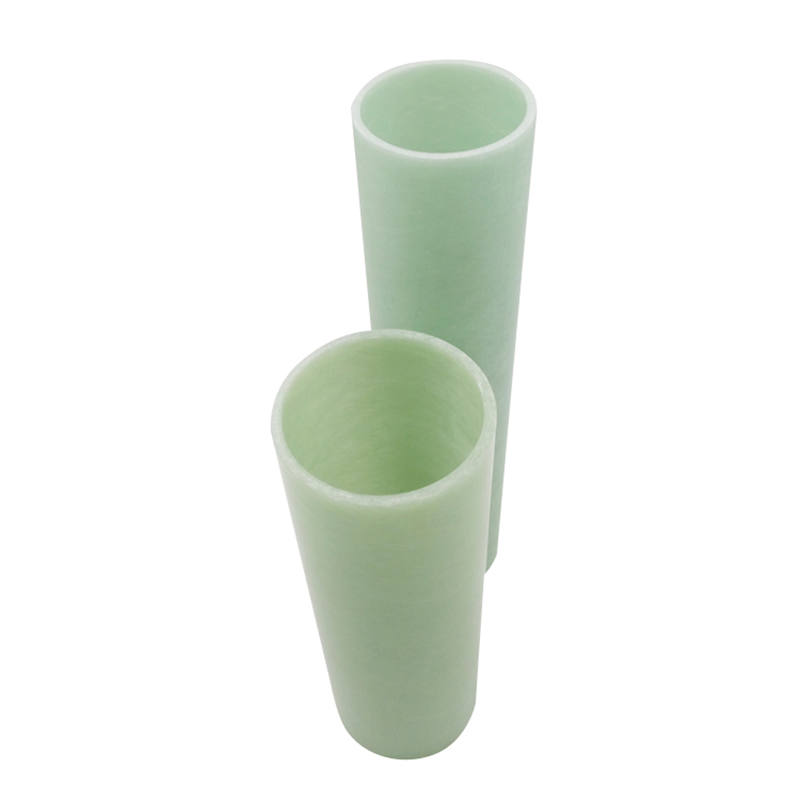

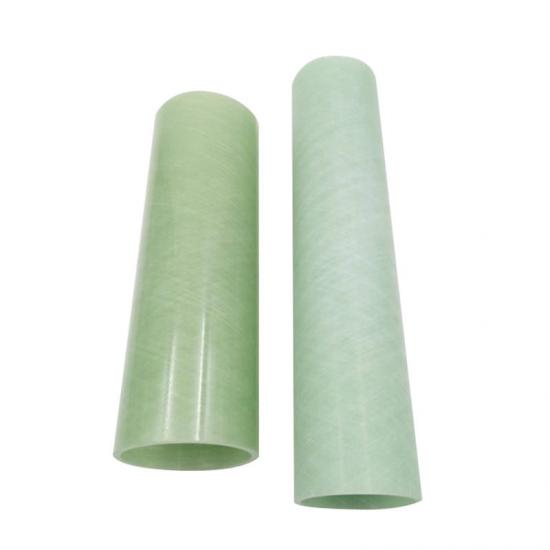

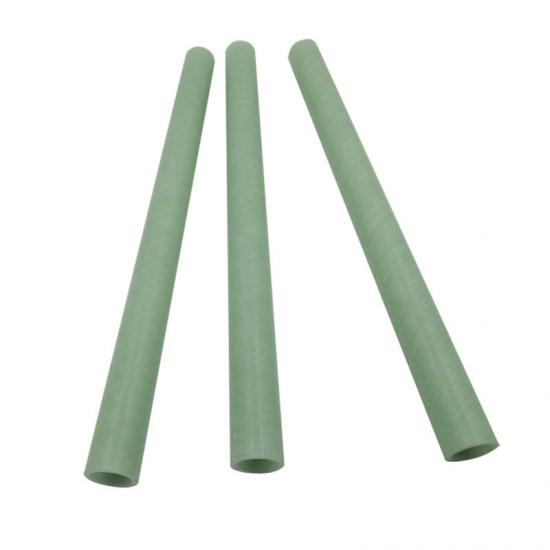

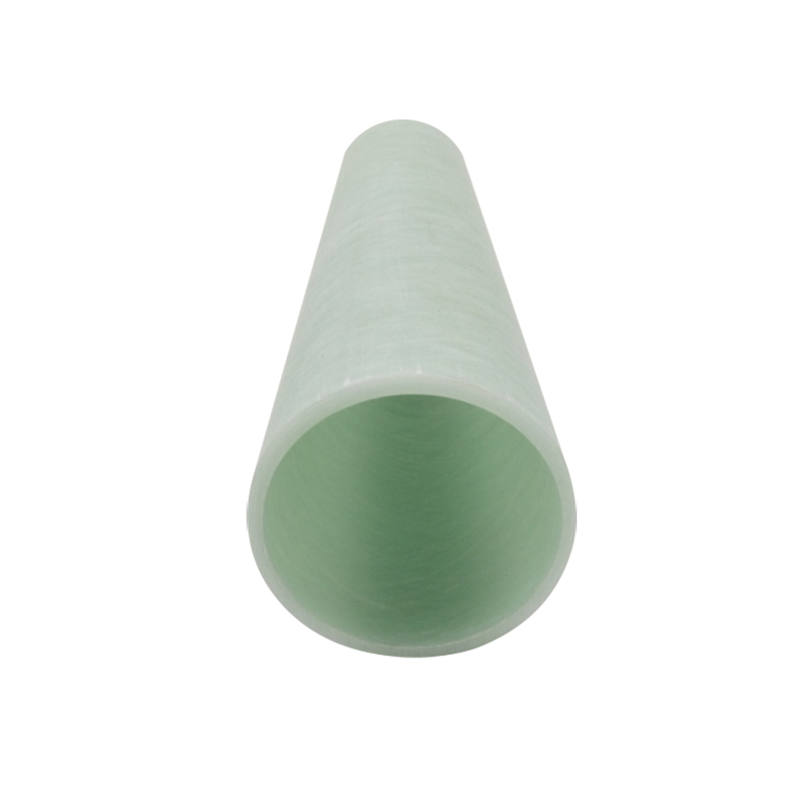

Nema Grade G10 FR4 G11 tubing are made of alkali-free glass fabric and binded with epoxy resin, cast to specific sizes, and then molded or ground to desired specifications.
G10 FR4 G11 tubes also have excellent chemical and electrical resistance under dry and wet conditions.G10 FR4 G11 tubes also exhibit high flexural, impact resistance, excellent mechanical and bonding strength at temperatures up to 130℃.
Suitable for being used as insulation structural parts of mechanical, electrical and electronic equipment. Applications include mast, heat exchanger, coil and inductor.The G10 fiberglass tube is ideal for spacers and standoffs.G10 FR4 G11 tubes are also suitable for bushings.G10 FR4 G11 tubes are available in both standard and custom sizes.
FR4 G10 G11 Epoxy Tube Properties:
| Item | Test method | Unit | Values | ||
| Physical properties | color | ---- | /// | ||
| density | IEC 60893-2 8.1 | g/cm3 | 1.85-2.00 | ||
| water absorption | IEC 60893-2 8.2 | % | ≤ 0.5 | ||
| Mechanical properties | Tensile strength | IEC 60893-2 5.7 | Mpa | ≥400 | |
| Flexural Strength(perpendicular) | IEC 60893-2 5.1 | ≥650 | |||
| Compressive strength | parallel | IEC 60893-2 5.3 | ≥ 290 | ||
| perpendicular | ≥200 | ||||
| Shearing strength | IEC 60893-2 5.6 | ≥ 89.7 | |||
| Impact strength(Charpy) | IEC 60893-2 5.5 | Kj/m2 | ≥ 475 | ||
| Electrical properties | Volume Resistivity | IEC 60089 | Ω·m | ≥1.0 x 1012 | |
| Surface Resistivity | Ω | ≥ 1.0×1014 | |||
| Electric strength perpendicular to lamination (90℃ in oil) | IEC 60893-2 6.1.2 | kV/mm | ≥ 10.0 | ||
| Breakdown Voltage parallel to lamination | KV | ≥ 45 | |||
| Arc Resistance | IEC 61621:1997 | Sec. | ≥ 180 | ||
| Thermal properties | Coefficient of Thermal Expansion | ASTME 228-11 | 1/K | ≤2×10-5 | |
| coefficient of heat conduction | GB/T 10297-1998 | W/(m2×K) | ≤10.79 | ||
FAQ:
Q:What is fr4 material?
A:Fr-4 Little green/yellow/black sheet is a rigid insulation material made of imported alkali free glass fiber cloth impregnated with imported epoxy ester resin and added with imported flame retardant and adhesive.
Q:What is Garolite used for?
A:Plastic G-10 / FR4 (GAROLITE) is a thermosetting epoxy resin sheet, bakelite and glass fiber material.With good electrical insulation, chemical corrosion resistance, high temperature resistance, moisture resistance, hydrolysis resistance, widely used in the electrical industry, the most is to make circuit plate.
Q:What is the difference between g10 and Micarta?
A:G10 is made of multi-layer woven glass fiber and epoxy resin. Like G10, Micarta is made of multi-layer woven material and epoxy resin layer. However, Micarta is not made of woven fiberglass, but of natural fabrics such as canvas, linen, paper, or burlap. What is certain is that the cost of G-10 is cheaper than that of Mikata, and G-10 is easier to customize and process.
Q:What are fiberglass tubes?
A:Fiberglass tube is a kind of pultrusion formed FRP composite material, which is a thermosetting elastic material formed by continuous fiberglass coarse sand and resin under the traction of pultrusion molding machine.The rich resin layer on the surface makes it have good anticorrosion.Common fiberglass tubes include FR4 G10 G11 3240 tubing.
Q:What color is g10?
A:The Natural color is Light Green,and common colors include yellow and black.But customized colors are available.
