Product Description:
What is G10?

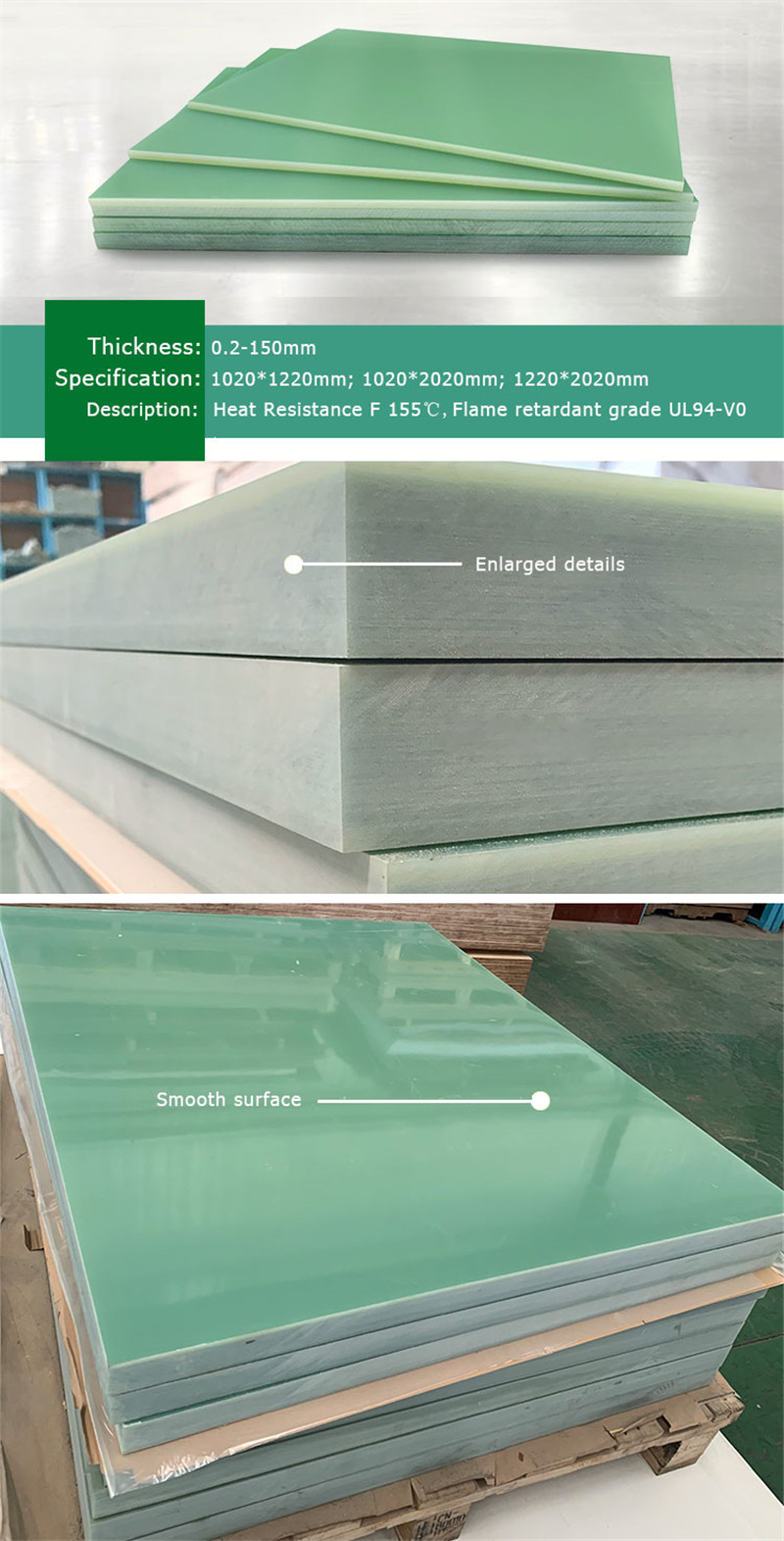

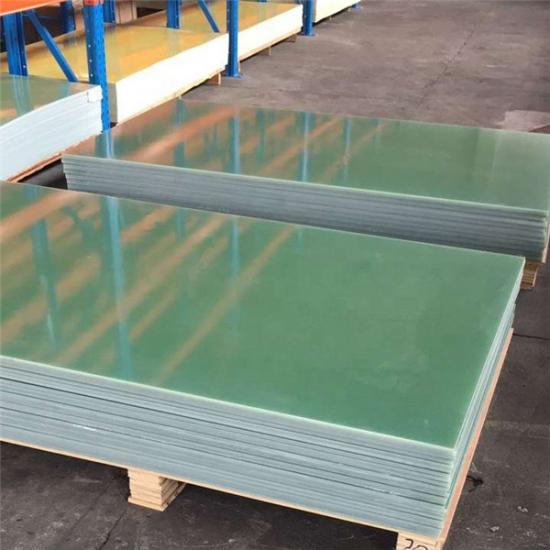

G10 is a very durable composite material that comes in a variety of sizes and it is a thermosetting industrial laminate consisting of a continuous filament glass cloth material with an epoxy resin binder.G10 material has extremely high mechanical strength, good dielectric loss properties, and good electric strength properties, both wet and dry.NEMA grade G10 glass epoxy is natural in color and non-brominated/ non- flame retardant.
G10/FR4 is by far the most machined and fabricated grade.JY Machinery is a Custom manufacturer specializing in precision machined high pressure NEMA grade G-10 glass fabric based laminate.We also offer more custom CNC plastic machining services that minimize development time and costs without sacrificing product quality and performance.
Contact JY Machinery today for more information about our G10/FR4 CNC Machining services and capabilities.

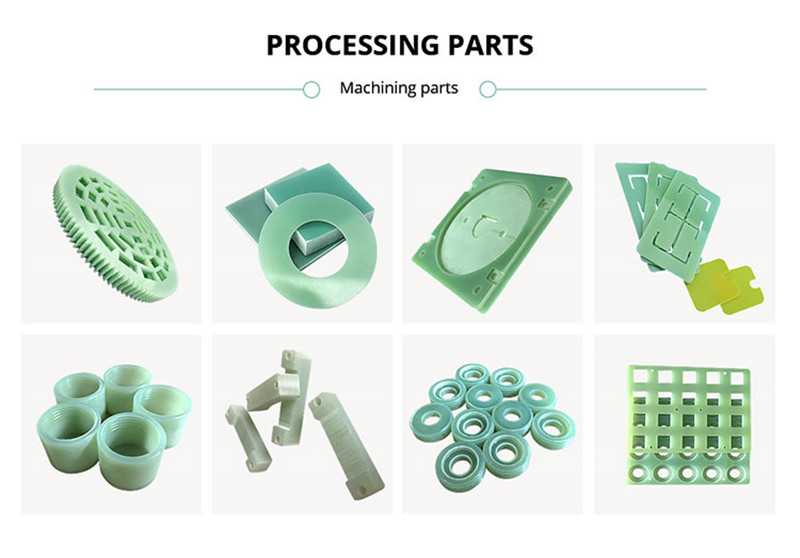

Products Show
Data sheet of G10 Material
|
Standard |
GB/T 1303-2009 / IEC60893-2003 |
|||||||
|
Basic Information |
Chinese Name |
Epoxy Fiberglass Laminate | ||||||
|
IEC |
EPGC201 |
EPGC202 |
EPGC203 |
EPGC204 |
EPGC306 |
EPGC308 |
||
|
NEMA |
- |
FR4 |
G10 |
FR5 |
G11 |
- |
||
|
Basic Material |
Glass fiber cloth |
Electronic Grade Glass Fiber Cloth |
||||||
|
Resin |
Epoxy |
Heat-resistant Epoxy Resin |
||||||
|
Color |
Natural |
Natural/Green |
||||||
|
No. |
Test Item |
Unit |
Value |
|||||
|
1 |
Density |
g/m³ |
1.8~1.95 |
|||||
|
2 |
Vertical Layer Bending Strength (normal) |
MPa |
≥340 |
|||||
|
3 |
Parallel Layer Impact Strength (simply supported beam method) |
KJ/m2 |
≥38 |
|||||
|
4 |
Vertical Layer Electrical Strength(90℃transformer oil)(1mm thickness) |
Kv/mm |
≥14.2 |
|||||
|
5 |
Parallel Layer Breakdown Voltage(90℃transformer oil) |
kv |
≥35 |
≥35 |
≥40 |
≥35 |
≥40 |
≥35 |
|
6 |
Dielectric Constant (50Hz) |
- |
≤5.5 |
|||||
|
7 |
Dielectric Loss Factor(50Hz) |
- |
≤0.04 |
|||||
|
8 |
Insulation Resistance after Immersion |
Ω |
≥5.0*1010 |
|||||
|
9 |
Proof Tracking Index(PTI) |
- |
- |
- |
- |
- |
≥200 |
- |
|
10 |
Combustibility |
- |
- |
V-0 |
- |
V-0 |
- |
- |
|
11 |
Temperature Index |
- |
130 |
130 |
155 |
155 |
155 |
180 |
|
12 |
Water Absorption(1-20mm thickness) |
mg |
17~73 |
|||||
|
Note:Range values are measured for different thicknesses |
||||||||
