Electrical insulation G10 glassfibre board

1) Grade: G10/FR4
2) Color: Natural Green
3) Thickness range: 100mm~180mm (4 inches~7 inches)
4) Sheet size: 915*1220mm; 1020*1220mm
Products description

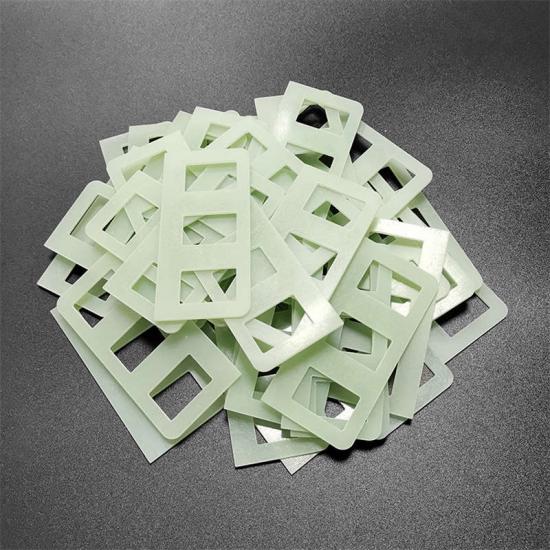

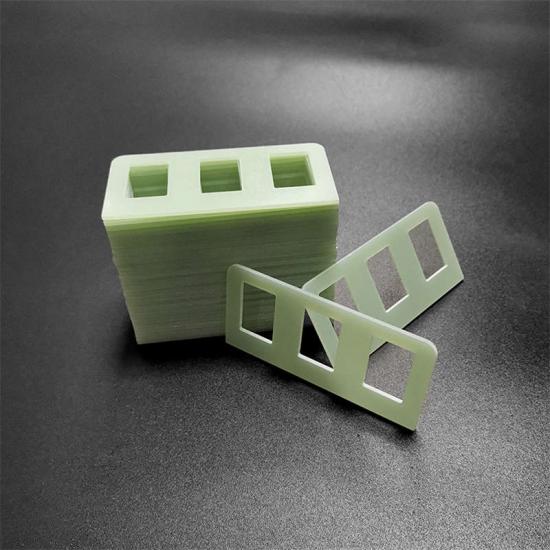

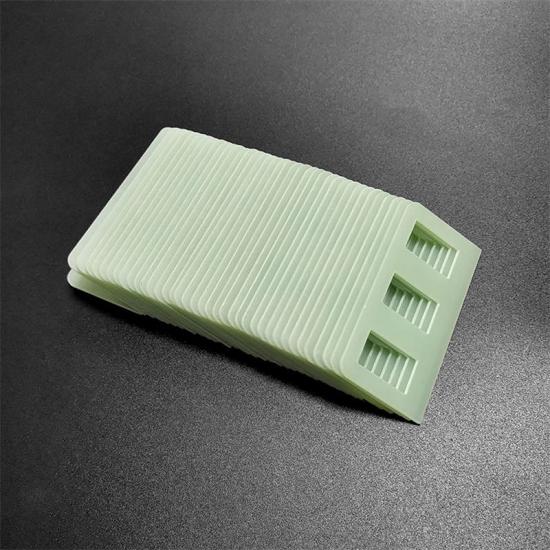

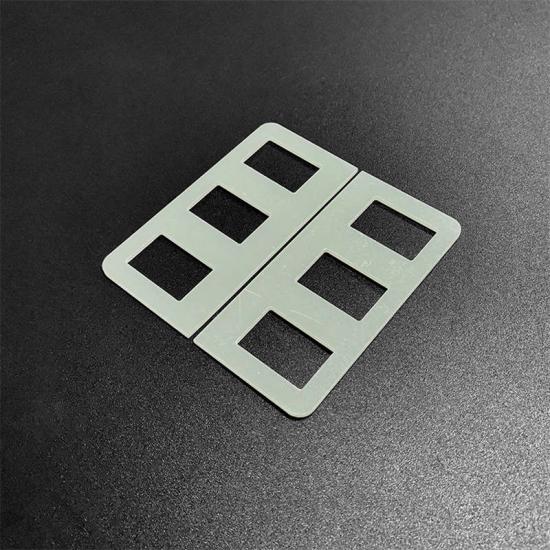

G-10 Glass Epoxy Sheet Machining


A light green material, G-10 glass epoxy sheet combines a woven glass fabric and an epoxy resin laminate that contains bromine. G10 provides consistent quality and good electrical properties under dry and humid conditions, as well as high flexural, impact, and bond strength at room temperatures. Due to a high mechanical strength, low water absorption and superior electrical characteristics, this product is suitable for a variety of structural, high humidity, and electrical insulation applications, which include terminal boards, lapping carriers, and disc and microelectronics polishing. It will withstand temperatures up to 284F and has a moisture absorption rate of .15%.

JY Machinery can meet short lead time requirements for machined plastic parts because of excellent material supplier relationships, sensible inventories, a fast quote process and a commitment to our customersWe are able to supply small and large quantities of sheets, rods, tubes (round/square/rectangular), angles, and custom fabricated parts. Our wide range of composites make it easy for us to designate the best fit for your composite insulation or bearing requirements.


Product Show



Product Parameters

TYPICAL PROPERTIES OF G10/FR-4 GLASS EPOXY



UNITS

ASTM TEST


G10/FR-4
(GLASS EPOXY)


Specific gravity



D792

1.80

Tensile strength (CW)

psi

D638

38,000

Flexural strength (CW)

psi

D790

60,000

Flexural modulus

psi

D790

2,400,000

Compressive strength

psi

D695

55,000

Hardness

Rockwell M

D785

115

Izod impact (notched, CW)

ft-lbs/in of notch

D256

12.0


Maximum continuous service
temperature in air


°F



266


Water absorption
(immersion 24 hours)


%

D229

0.10


Product Features

*High mechanical & electrical strength

*Excellent rigidity & dimensional stability

*Good dielectric properties

*Low water absorption

*Maximum operating temperature up to 200 degree Celsius (Type: G-11)

*Flame resistance (Type: FR-4)

*Tighter thickness tolerance

*Flat and straight panel

*Smooth and clean surface.

*Easy to machine


Main Insulation Product Categories

• Epoxy Glass Fiber cloth laminated sheet(3240/FR-4/G-10/FR-5/G-11)

• Phenolic laminated sheet

• Polyester Laminated sheets(GPO-3/UPGM 205)

• SMC/BMC/DMC Molded Parts

• Insulation Rods&Tubes

• Pultruded Profiles

• Engineering Plastics Parts



G10/FR4 Parts Applications

The characteristics of the G10 / FR4 make it ideal for complex, high-precision electrical insulator projects.Electrical insulators limit the flow of current and provide protection for anyone who comes into contact with them,while ensuring the integrity of the circuit and the structural integrity of the product.


Some of the many products that use G10 / FR4 materials include:


  • Lighting equipment and other switches
  • Timers, transformers and other electrical controls
  • Arc barrier
  • Terminal boards
  • Washers
  • Sleeves
  • Structural components


And more.For information on whether G10 / FR4 is suitable for your project, please contact us and speak directly to one of our engineers.

Leave a message
If you are interested in our services and want to know more details,please leave a message here,we will reply you as soon as we can.
Related Product
Epoxy fiber glass fr4 sheet

Epoxy fiber glass fr4 g10 sheet

• Thickness:0.1-100mm • Standard Sheet Sizes:1020*1220mm 1030*1230mm 1220*2440m
phenolic laminate

Pertinax sheets Phenolic Cotton Fabric Laminated Sheet

• Thickness:0.1-100mm • Standard Sheet Sizes:1020*1220mm 1000*2000mm 1220*2440mm
fr4/g10 epoxy glass sheet

Insulation epoxy fiber glass laminated sheet FR4 G10

We can provide you with High Precision FR4 Machining Parts G10 G11 Epoxy Resin Glass Sheet with best quality.  JY Machinery was founded in 2004. It is one of the leading China manufactuers and suppliers of laminated insulation materials. We has a full range of insulated products. Sheets & Rods from thin to extra-thick, like FR4,G10,G11,3240,GPO-3,Phenolic Sheets, etc.
g10 thread rod

Fiberglass epoxy resin fr4 g10 g11 threaded rods & nuts

Fiberglass Reinforcing Bars/Fibreglass Rod are available to be customized and This material is manufactured to a mechanical property specification and the color of the material may vary significantly from batch-to-batch.
G10 FR4 Epoxy Laminate

Epoxy glass fibre sheet G10 FR4 fiberglass insulation board

Imported FR-4 / G-10 board,electronic grade E-glass fiber cloth,impregnated with epoxy resin hot forming.
G10 FR4 Glass Epoxy Panels

High Quality FR4 Fibre Glass Laminate

FR-4 is also known as fiberglass board; FR4 reinforcing board; FR-4 epoxy resin board; flame retardant insulation board; epoxy board, FR4 light board; epoxy glass cloth board; circuit board drilling pad.
