FR4 G10 customized CNC machining parts epoxy fiberglass

Professional factory manufacturing high quality CNC Machining 3240/FR4/G10/FR5/G11 materials insulating parts.

Products description

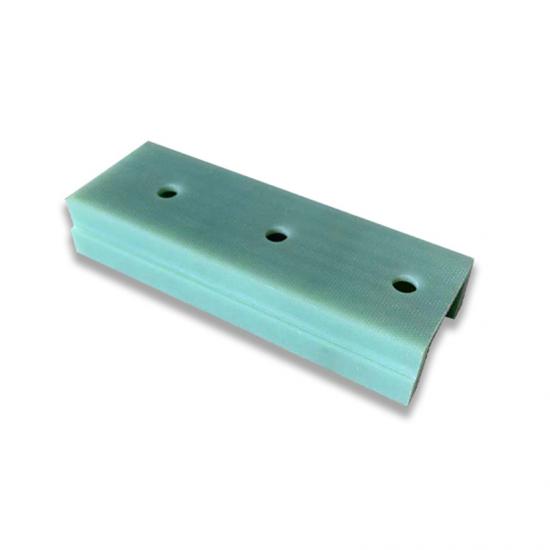

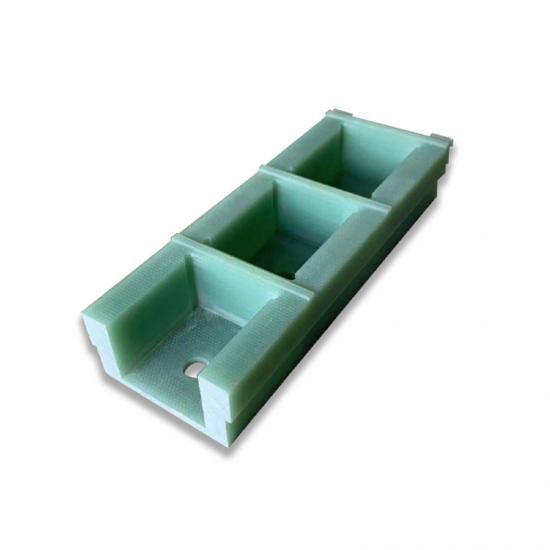

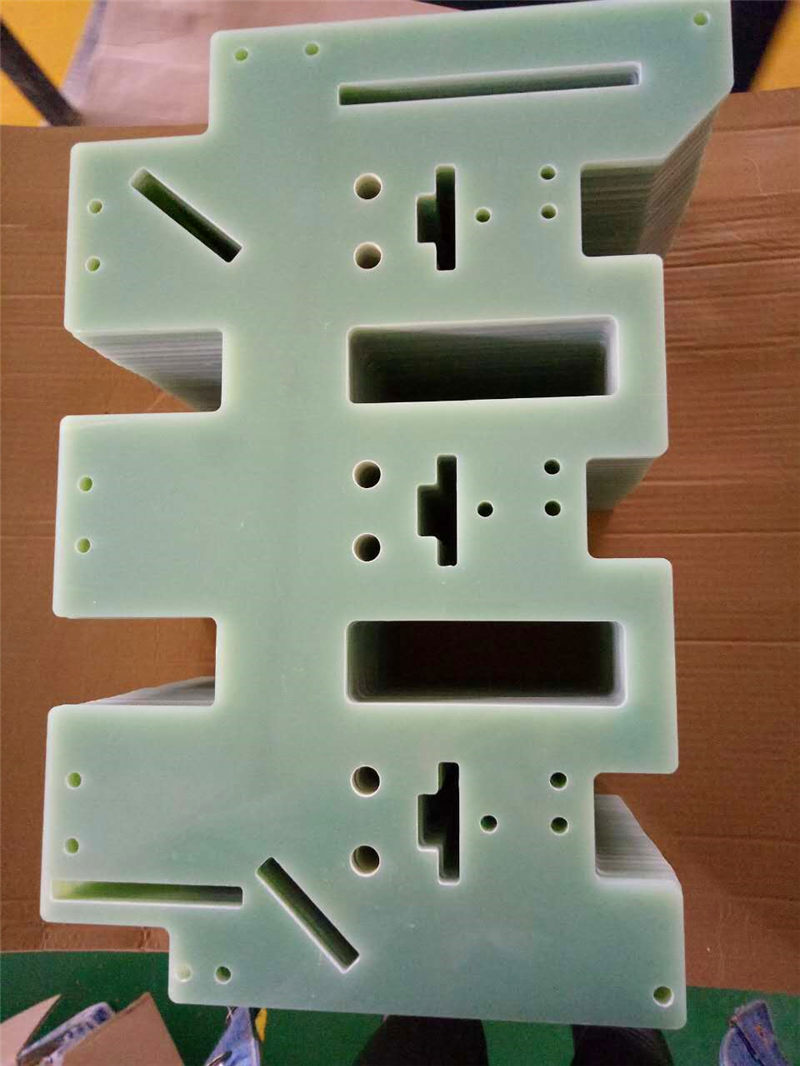

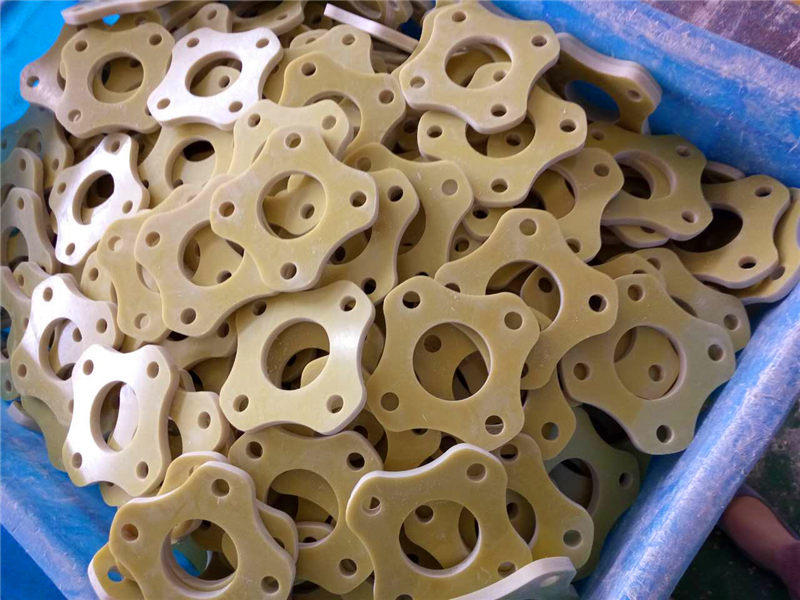

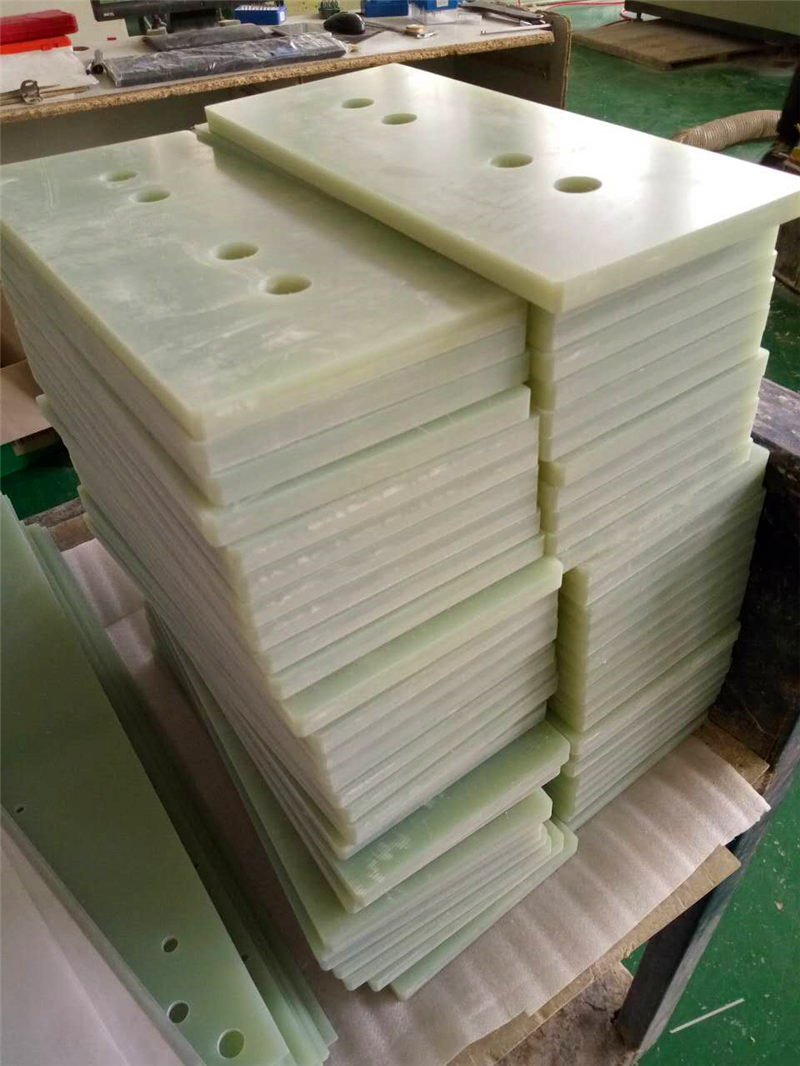

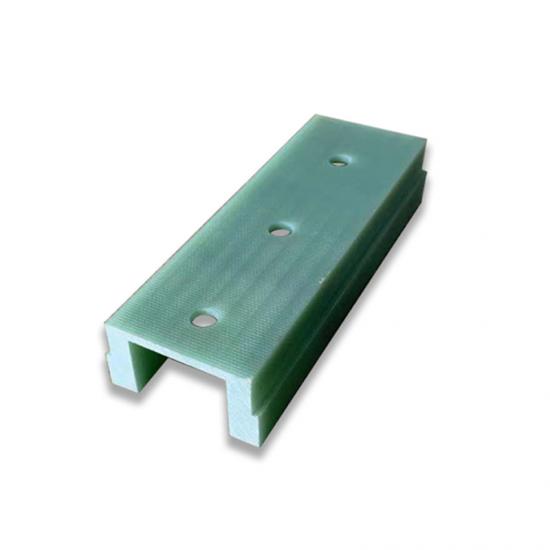

FR4 G10 customized CNC machining parts epoxy fiberglass

Product details:

Model Number:FR4/G10

Type:Insulation Sheet

Material:Epoxy resin and fiberglass cloth

Application:High Temperature

Rated Voltage:35KV

Tensile Strength:340Mpa

Product name:FR4/G10 Epoxy glass fiber laminate sheet

Thickness:0.5-100mm

Size:1020*1220mm,1020*2040mm,1220*2040mm,1220*2440mm

Color:Green, yellow ,black,white

Density:1.9~2.2g/cm3

Flammability:UL94V-0

Certification:SGS

Glass Transition Temperature:127℃

Sample:Available

Usage:Mechanical, electrical and electronic insulation structure parts

Note: More sheet series,sizes, thicknesses, colors could be Customized upon request !



Products Features:

1. The flame retardant grade of FR-4 is UL94 V0

2. F grade Heat resistance and heat resistance (120 min) reaches to 180 ℃

3. High mechanical performances (bending, compression and stretching of transverse strength is above 330Mpa)

4. High dielectric properties of the oil (25 ℃ in the vertical dielectric strength of 16 kv/mm).

5. G10 material has excellent halogen free,low smoke&green products

6. We can press, cut and process the sheet according to customer's requirements and provide insulation accessories directly.



Application:


  • Motors and electrical equipment insulation parts,
  • General machines parts and gear, generators, Pads, base, baffle,Generator, transformer, fixture, inverter, motor.
  • Backing boards: PCB drilling machine, Plastic Mould, Injection Mould, Injection molding machine, Table grinding machine, ICT governance
  • Reinforcement sheets: Testing fixture PFC,FPC
  • Less than 3 mm is used for Raw materials of PCB flexible circuit board test processing
  • Needle plate, carrier board and insulating electrical and electronic products



Main Insulation Product Categories:

• Epoxy Glass Fiber cloth laminated sheet(3240/FR-4/G-10/FR-5/G-11)

• Phenolic laminated sheet

• Polyester Laminated sheets(GPO-3/UPGM 205)

• SMC/BMC/DMC Molded Parts

• Insulation Rods&Tubes

• Pultruded Profiles

• Engineering Plastics Parts



Our Servies:

1.Rich Experience

Professional materials background and non-metallic materials processing experiences with more than 10 years,using in industry field like transformer,generator,electric motor,etc.

2.Provide one-stop service

From raw material sheet supply to customized further processing of nonmetal insulating parts.We can develop and produce various high standards and personalized products according to customers' requirement.

3.Pre-sales Service

We have professional sales team to offer comprehensive technical and business consultation services. Designing and fabricating targeted products according to the special requirements of clients.

4.After-sales Service

Highly inspecting equipment in every working procedure, quality comes first.

5.Our Advantage

Competitive price, Flexible payment options, Quick speed.

Always ready for supplying the best solution for your various application.



FAQ:

Q1:What about the package of product?

 1. Wooden pallet with carton.

 2. Plastic pallet with carton.

 3. Wooden wooden pallet with wooden case.

 4. According to customer requirements.

Q2. What is your terms of payment?

T/T 30% as deposit, and 70% before delivery.

Q3.Is there any way to check before delivery?

We'll show you the photos of the products and packages before you pay the balance.

Q4. What is your terms of delivery?

EXW, FOB, CFR, CIF, DDU.

Q5. How about your delivery time?

Generally, it will take 10 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.

Q6. Can you produce according to the samples?

Yes, we can produce according to your samples or technical drawings.Also We can build the molds and fixtures.

Q7. How can I get the sample?

We can supply the free sample if we have stock.

Q8.Do you test all your goods before delivery?

Yes, we do the 100% test.

Leave a message
If you are interested in our services and want to know more details,please leave a message here,we will reply you as soon as we can.
