What’s GPO-3 material?

GPO-3 material is a mineral filled, continuous strand fiberglass-mat-reinforced thermoset unsaturated polyester material.GPO-3 laminate performs well in electrical applications including flame, arc, and track resistance.

Features of GPO-3:

1. Flame resistance: Because GPO-3 is made of halogen-free materials, when a fire occurs, it has good flame resistance and does not produce toxic gases.

2. Good mechanical properties: Because the main material of GPO-3 is high-strength glass fiber, it is not prone to chipping, and it is easy to bend to a diameter of 19mm

3. Simple production and easy forming: GPO-3 insulation material is simple and convenient to process, which can be punched, drilled, machined, cut and frosted

4. High temperature resistance: Because of the special properties of the material, GPO-3 can have UL temperature ratings within the range of 120-210°C electronics and 130-210°C mechanical. Has a strong stable performance.

5. Good insulation performance: It has high-quality insulation materials and is widely used in the electrical industry.

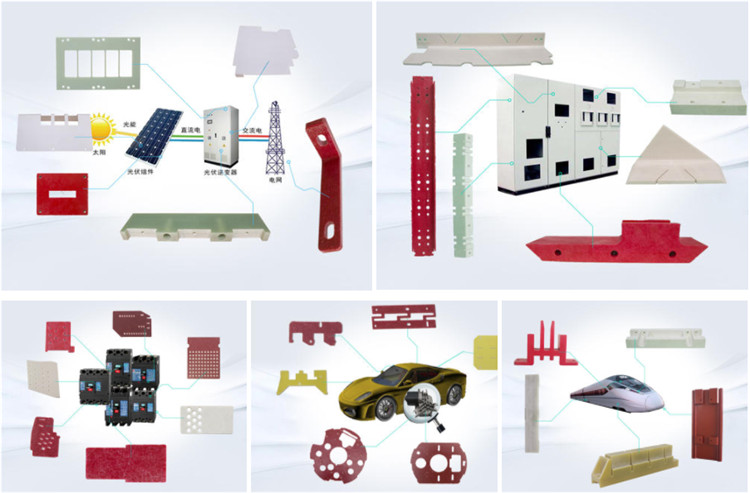

Application of GPO-3:

1. GPO-3 is widely used in circuit breakers, frame type circuit breakers: there are many applications in safety shutters, safety shutters, spacers, phase spacers, etc.; applications in molded case circuit breakers: Components such as phase partition plate and arc extinguishing chamber arc partition plate have applications;

2. GPO-3 is widely used in motors, such as motor armature parts, movable cover plates, slot wedge stators, fixed washers, thin washers, etc.

3. GPO-3 is widely used in various switchgears, and is used at the front, back, upper, low, and the same partitions in the partition system;

4. GPO-3 is widely used in various switch cabinets, such as partitions, liners, arc extinguishing hoods, arc extinguishing cylinders, arc extinguishing pieces, etc.;

5. GPO-3 is widely used in AC contactors; explosion-proof electrical appliances and other low-voltage electrical insulation partitions, etc.

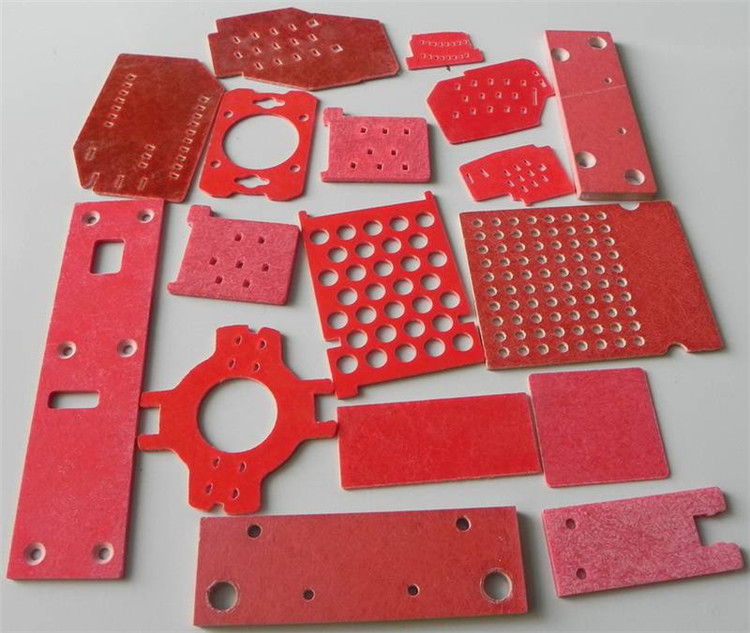

In recent years, the development of insulating materials can be described as rapid progress, and the sales volume of GPO-3 is particularly prominent in the market. JY Machinery has rich experience in processing GPO-3. We have professional technicians and operators, as well as precision CNC machining equipment, including CNC engraving machines, gantry milling machines, CNC drilling machines, etc. In insulation processing, we can achieve high machining accuracy, small errors, and smooth surface without burrs. We only need a drawing or a sample to solve your problems.
