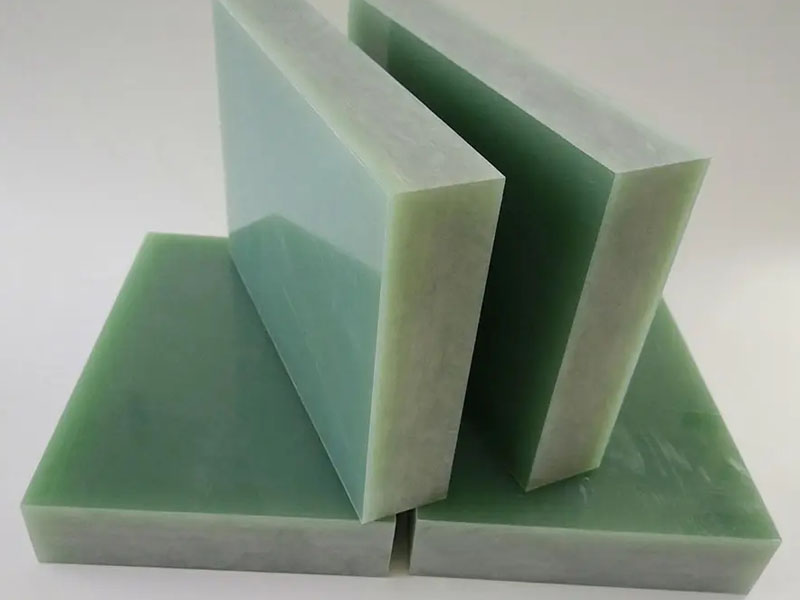

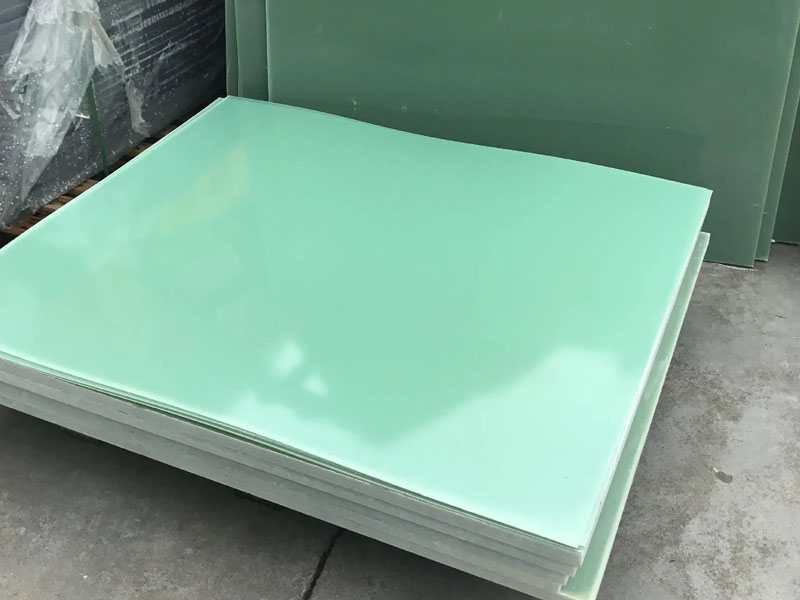

FR4 epoxy glass fiber board is a kind of substrate with epoxy resin as adhesive and electronic grade glass fiber cloth as reinforcing material. Its bonding sheet and inner core thin copper clad laminate are important base materials for making multi-layer printed circuit boards.
Vertical Bending Strength A: Normal:
E-1/150, 150±5℃≥340Mpa
Parallel layer impact strength (simply
supported beam method): ≥230KJ/m
Insulation resistance after immersion in
water (D-24/23): ≥5.0×108Ω
Vertical layer-wise electrical strength (in
90±2℃ transformer oil, plate thickness 1mm): ≥14.2MV/m
Parallel layer breakdown voltage (in 90±2℃
transformer oil): ≥40KV
Relative permittivity (50Hz): ≤5.5
Relative dielectric constant (1MHz): ≤5.5
Dielectric loss factor (50Hz): ≤0.04
Dielectric loss factor (1MHz): ≤0.04
Water absorption (D-24/23, plate thickness
1.6mm): ≤19mg
Density: 1.70-1.90g/cm³
Flammability: F V0
The mechanical properties, dimensional
stability, impact resistance and moisture resistance of epoxy glass fiber cloth
substrates are higher than those of paper substrates. It has excellent
electrical performance, high operating temperature, and its performance is less
affected by the environment. In terms of processing technology, it has great
advantages over other resin glass fiber cloth substrates.
