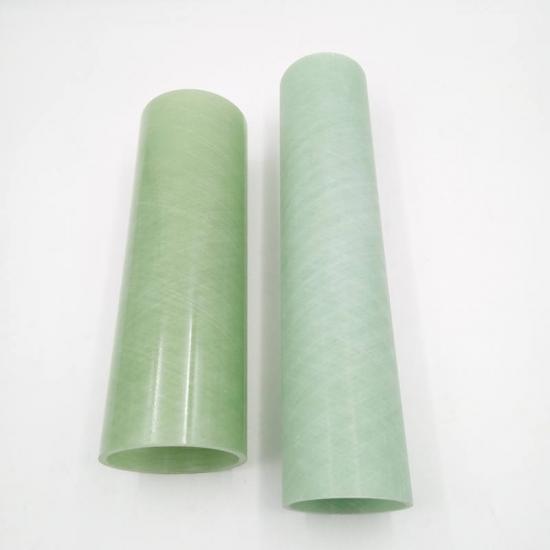

Custom FR4 G10 G11 Insulation laminate Tubes for Electrical Application

  • G-10/FR4 Sheets, Rods, Tubes and Parts are available from JY Machinery.
  • G10, FR4, G11 Glass reinforced Epoxy composite tubes are excellent extreme temperature and electrical insulation.
  • This G10 and FR4 material is also available thinner and thicker as well as in rod and tube.
  • Fabricator of G10 Laminated Tubes,meet variety of applications.
Products description

Nema Grade G10 FR4 G11 tubing are made of alkali-free glass fabric and binded with epoxy resin, cast to specific sizes, and then molded or ground to desired specifications.

G10 FR4 G11 tubes also have excellent chemical and electrical resistance under dry and wet conditions.G10 FR4 G11 tubes also exhibit high flexural, impact resistance, excellent mechanical and bonding strength at temperatures up to 130℃.

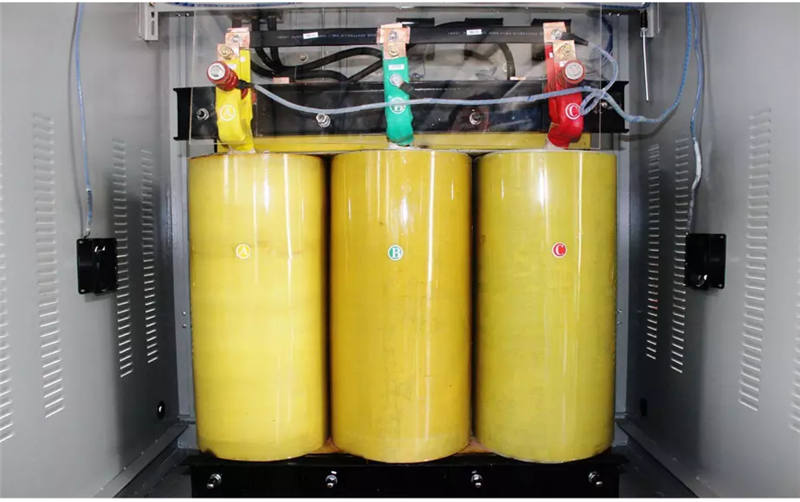

Suitable for being used as insulation structural parts of mechanical, electrical and electronic equipment. Applications include mast, heat exchanger, coil and inductor.The G10 fiberglass tube is ideal for spacers and standoffs.G10 FR4 G11 tubes are also suitable for bushings.G10 FR4 G11 tubes are available in both standard and custom sizes.

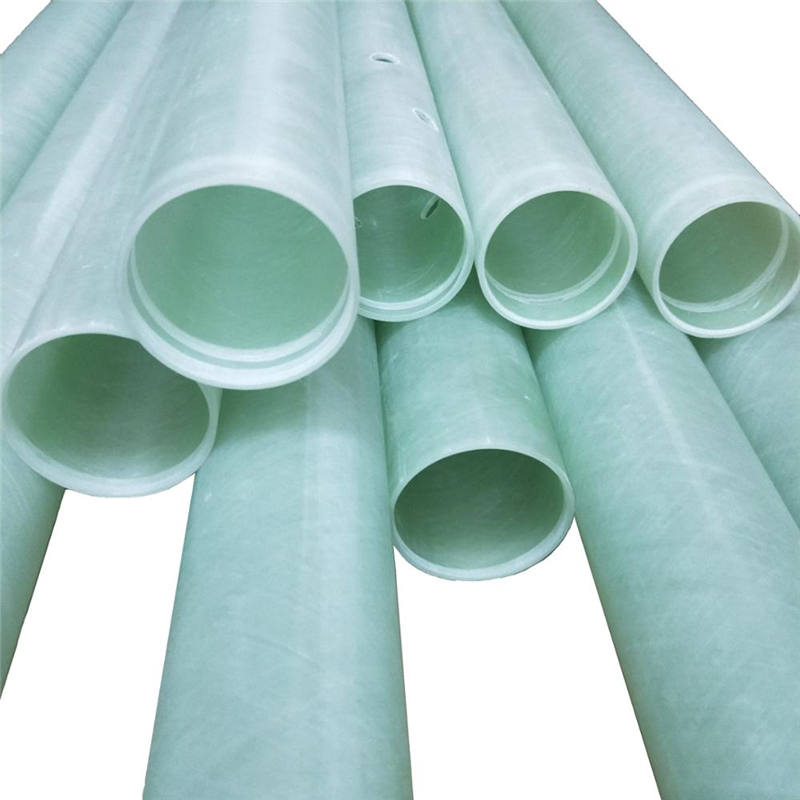

G10 fiberglass tubeG10 fiberglass tubes


FR4 G10 G11 Epoxy Tube Properties:

Item Test method Unit Values
Physical properties color   ---- ///
density IEC 60893-2 8.1 g/cm3 1.85-2.00
water absorption IEC 60893-2 8.2 % ≤ 0.5
Mechanical properties Tensile strength IEC 60893-2 5.7 Mpa ≥400
Flexural Strength(perpendicular) IEC 60893-2 5.1 ≥650
Compressive strength parallel IEC 60893-2 5.3 ≥ 290
perpendicular ≥200
Shearing strength IEC 60893-2 5.6 ≥ 89.7
Impact strength(Charpy) IEC 60893-2 5.5 Kj/m2 ≥ 475
Electrical properties Volume Resistivity IEC 60089 Ω·m ≥1.0 x 1012
Surface Resistivity Ω ≥ 1.0×1014
Electric strength perpendicular to lamination (90℃ in oil) IEC 60893-2 6.1.2 kV/mm ≥ 10.0
Breakdown Voltage parallel to lamination KV ≥ 45
Arc Resistance IEC 61621:1997 Sec. ≥ 180
Thermal properties Coefficient of Thermal Expansion ASTME 228-11 1/K ≤2×10-5
coefficient of heat conduction GB/T 10297-1998 W/(m2×K) ≤10.79

FAQ:

Q:What is g10 fr4?

A:G10 / FR4-epoxy glass fiber laminate
※ The non-alkali glass cloth for electrical engineering is impregnated with epoxy phenolic resin, which is a plate-shaped laminate made by hot pressing
※ Features
Class F (155 ℃) insulating material
Has high mechanical properties and dielectric properties, good heat resistance and moisture resistance, and has good machinability.
※ Purpose
Suitable for insulating structural parts in motors and electrical equipment, including various switches, electrical insulation, printed circuit boards, printed carbon film resistors, potentiometers, power distribution cabinets, computer drilling pads, metal fixtures, PCBs The test stand is made and can be used in wet environment conditions and transformer oil, which is extremely widely used

Q:What is the difference between g10 and fr4?

A:G10 FR4 laminate grades are produced by inserting continuous glass woven fabric impregnated with an epoxy resin binder while forming the sheet under high pressure.G10 and FR4 have extremely high mechanical strength, good dielectric loss properties, both wet and dry. The main difference between NEMA Grades G10 and FR4 is that FR4 is a fire retardant grade of G10. Therefore, FR4 may be substituted where G10 is called out except in applications where halogens are not desired. G10 can never be substituted where FR4 is called for.

Q:How do you cut fiberglass tubes?

A:The forming process of glass fiber tube is that the glass fiber impregnated with resin is cured in a high speed polymerization device of photoelectrothermal integration, and then formed by traction and pultruding.Because the thin wire of glass fiber tube is not easy to cut off and often has the phenomenon of connecting the wire, so can use special grinding wheel cutting machine, electric saw cutting machine, laser cutting machine to cut, the cutting cost of grinding wheel and electric saw is cheaper than laser.

Q:What are fiberglass tubes?
A:Fiberglass tube is a kind of pultrusion formed FRP composite material, which is a thermosetting elastic material formed by continuous fiberglass coarse sand and resin under the traction of pultrusion molding machine.The rich resin layer on the surface makes it have good anticorrosion.Common fiberglass tubes include FR4 G10 G11 3240 tubing.

Q:Is g10 waterproof?

A:G10 material has water resistance, but still has a trace proportion of water absorption, NEMA grade G10 water absorption ratio is less than 0.5%


More Machined Parts:


     Epoxy Fiberglass Laminated Sheet                 Epoxy Fiberglass Machined Parts             FR4 G10 Machined Parts


Machining Bakelite Parts                                   Machining Phenolic Parts                           Machining GPO-3 Parts


Contact us:

JY Machinery Provides one-stop service from raw material sheet/tube/rod supply to customized further processing of nonmetal insulating parts.We can develop and produce various high standards and personalized products according to customers' requirement.Excellent customer service, fair pricing, and quick turnaround times.Get a quote today!

Leave a message
If you are interested in our services and want to know more details,please leave a message here,we will reply you as soon as we can.
Related Product

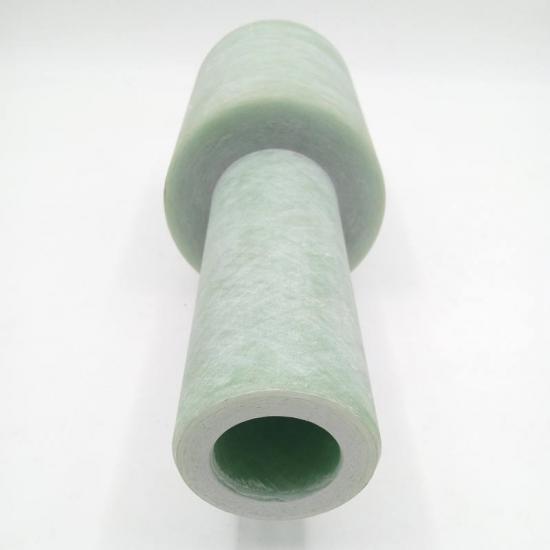

g10 fiberglass tube

G10 and FR4 laminate tube supplier

JY Machinery provide custom CNC turning, milling, routing and sawing services. We specialize in manufacturing large parts and our equipment is designed to process parts up to 3000mm or longer, with tolerances to +/- .002mm, depending on the material. Call JY Machinery today for all of your G10/FR-4 machining needs.

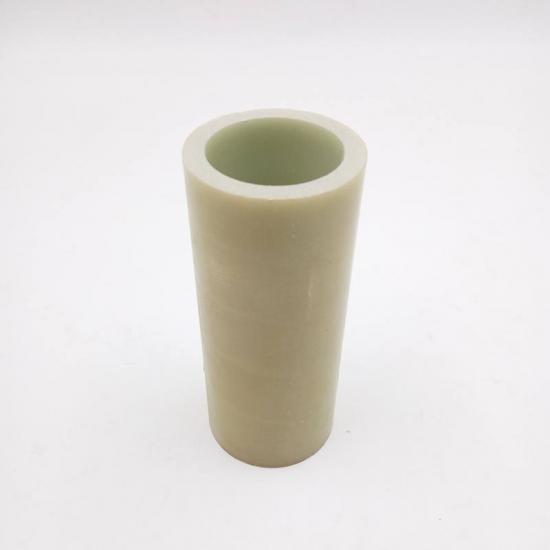

g10 g11 epoxy glass tube

Customized halogen-free g10 g11 tube manufacturing

G-10/G11 Tubes Product features: Color: Green,and customized is available Max. Temperature: 265° F Tensile Strength: 35,000-50,000 psi (Excellent) Impact Strength: 5.5-12 ft.-lbs./in. (Excellent) Hardness: Rockwell M110 (Extra Hard)

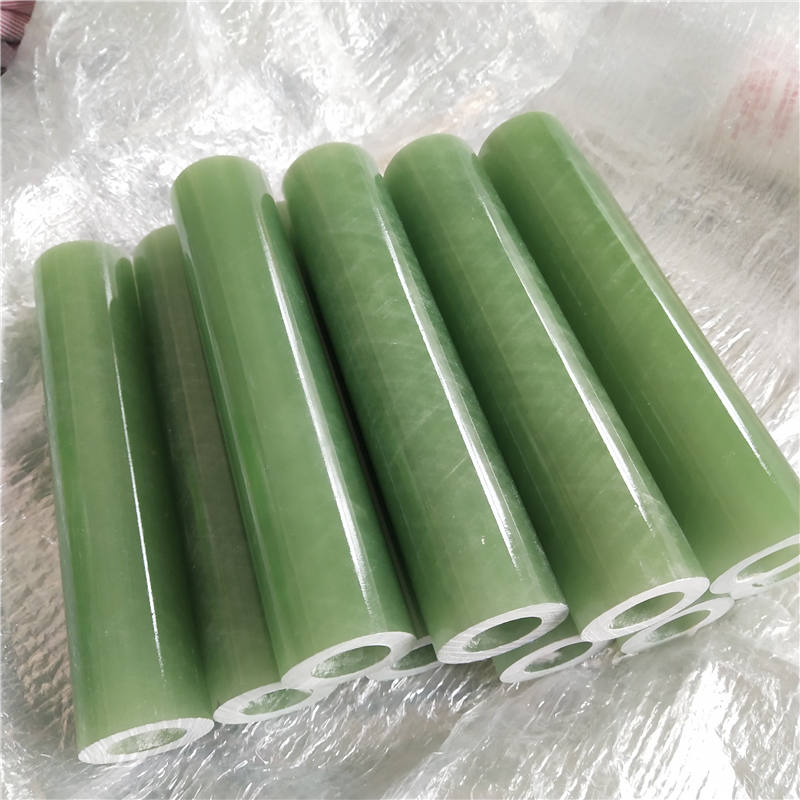

Fiberglass Tube 3240

Reinforced Epoxy Fiberglass Tube 3240 for Insulation

3240 Tube Custom composites are engineered to meet application criteria For Electricity Application

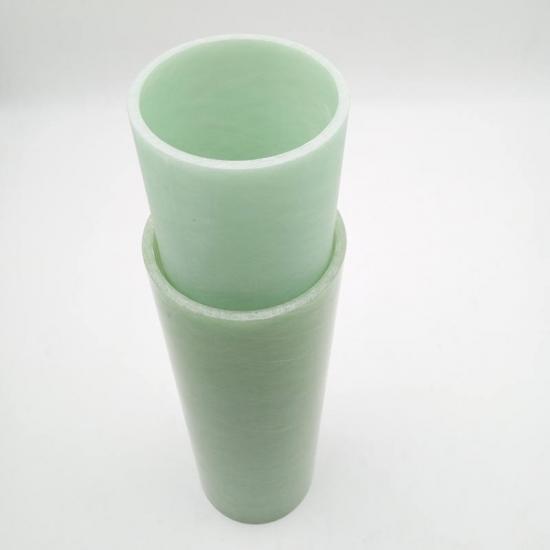

NEMA Grade G10/G11 Tubes

NEMA Grade G10/G11 Epoxy Fiberglass Insulation Tubes for Electricity Mechanical Parts

G10/G11 Tube Custom composites are engineered to meet application criteria Electricity Mechanical Parts
G10 FR4 Glass Epoxy Rod

Insulation FR4 G10 Epoxy Resin Fiberglass Rod Bar

Phenolic G-10/FR4 rod is a fiberglass-reinforced plastic with epoxy resin that provides high moisture resistance Offers good electrical insulation properties for electrical applications Temperature Range:280° F Tensile Strength:36,000 psi

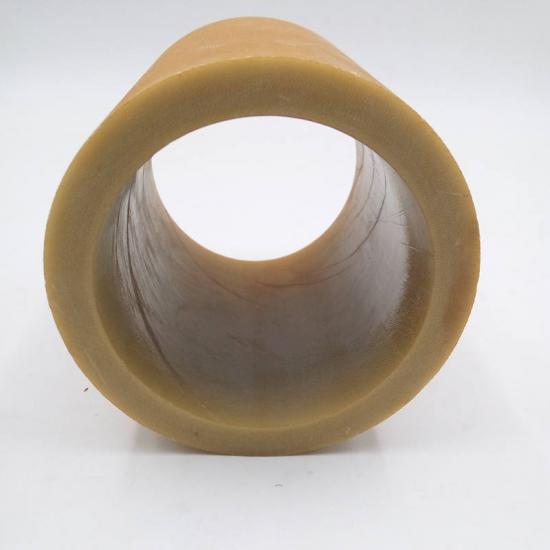

fr4 g10 g11 epoxy tube manufacturing

High Flame-Retardant Epoxy Fiberglass Tube Excellent Voltage Resistance

Technical advantages, mold development and design capabilities, excellent supporting capacity. Excellent size, space stability, non cracking, non Explosive Edge Excellent Water Resistance,Excellent Voltage Resistance Available for humid environment and immerse into transformer oil
