FR4 G10 G11 Epoxy Resin Fiberglass Rods

  • Excellent flame retardancy (UL 94 V-0)(FR4)
  • Excellent voltage resistance (electric strength ≥16KV/mm)
  • Excellent water absorption performance (water absorption rate ≤0.2%)
  • Excellent thermal shock resistance (working temperature -273 ℃ to +155 ℃)
  • Excellent mechanical processing performance and high automatic processing rate
Products description

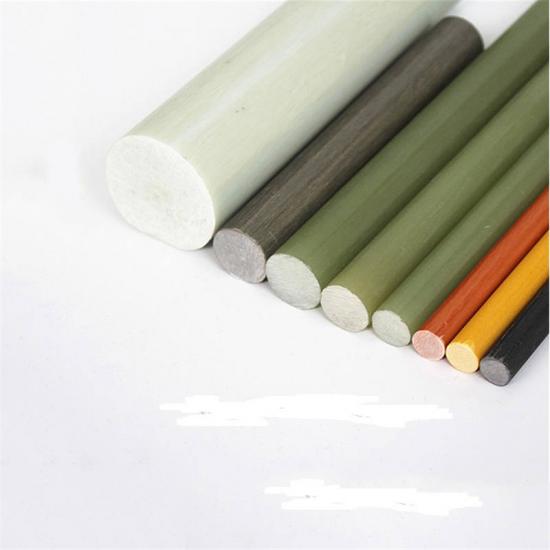

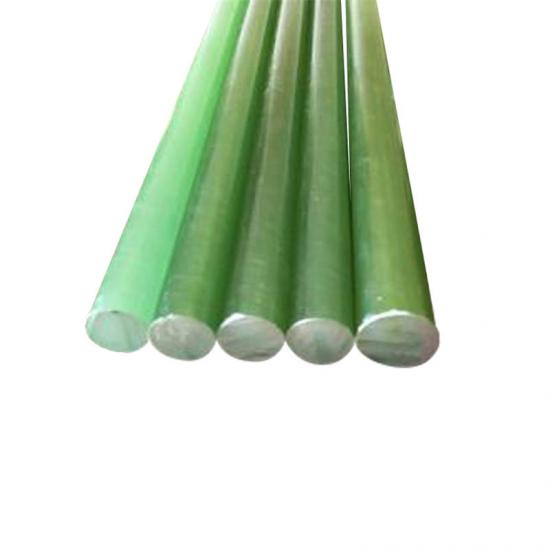

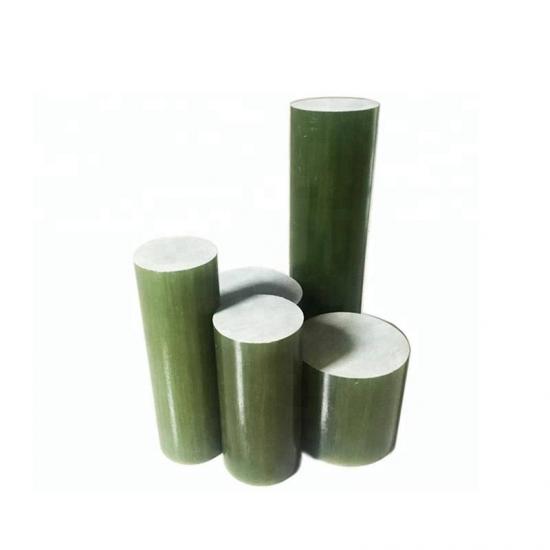

FR4 G10 G11 Epoxy Resin Fiberglass Rods

The FR4 G10 G11 epoxy glass fabric laminated rods is made from glass cloth fabric impregnated with epoxy resin, then heated into prepreg and rolling into the rod shape, finally put into the different diameters molds, under high temperature and pressure to cure into the rigid laminated rods.



Appearance: the surface should be smooth, without bubble, greasy dirt, and impurity. Heterogeneity of color, scratch, slight unevenness not hindering its use are permitted. Cracks, not hindering use, on top surface or section for the rod with diameters more than 25mm are permitted.



Applications: FR4 G10 G11 epoxy glass fiber rod is widely used as high and low voltage transformer accessories, electronic and electrical insulation parts, water conservancy and hydroelectric insulation parts, switch cabinet insulation parts, inverter insulation parts, industrial electric furnace insulation parts, semiconductor insulation parts, electrified railway insulation parts, shipbuilding insulation parts, nuclear power insulation parts, bus duct Insulating spacer gasket.

FR4 G10 G11 Epoxy Fiber Glass Rods Properties:

Item Test method Unit Values
Physical properties color   ---- ///
density IEC 60893-2 8.1 g/cm3 1.85-2.00
water absorption IEC 60893-2 8.2 % ≤ 0.5
Mechanical properties Tensile strength IEC 60893-2 5.7 Mpa ≥400
Flexural Strength(perpendicular) IEC 60893-2 5.1 ≥650
Compressive strength parallel IEC 60893-2 5.3 ≥ 290
perpendicular ≥200
Shearing strength IEC 60893-2 5.6 ≥ 89.7
Impact strength(Charpy) IEC 60893-2 5.5 Kj/m2 ≥ 475
Electrical properties Volume Resistivity IEC 60089 Ω·m ≥1.0 x 1012
Surface Resistivity Ω ≥ 1.0×1014
Electric strength perpendicular to lamination (90℃ in oil) IEC 60893-2 6.1.2 kV/mm ≥ 10.0
Breakdown Voltage parallel to lamination KV ≥ 45
Arc Resistance IEC 61621:1997 Sec. ≥ 180
Thermal properties Coefficient of Thermal Expansion ASTME 228-11 1/K ≤2×10-5
coefficient of heat conduction GB/T 10297-1998 W/(m2×K) ≤10.79

FAQ:

Q:What is epoxy?

A:Epoxy resin is a kind of resin glue, it belongs to chemical products. More is given priority to with a gel, it's a two-component, after adding 30% ammonia kind of curing agent, usually within 24 hours to curing molding, epoxy resin and glass fiber reinforced materials such as composite, often can get satisfactory design strength, such as some common carbon fiber car parts, are all based on epoxy resin as matrix resin.The properties of the composite products are closely related to the resin and the reinforced species and the content, and also to the specific molding process.

Q:What is the difference between g10 and fr4?

A:G10 FR4 laminate grades are produced by inserting continuous glass woven fabric impregnated with an epoxy resin binder while forming the sheet under high pressure.G10 and FR4 have extremely high mechanical strength, good dielectric loss properties, both wet and dry. The main difference between NEMA Grades G10 and FR4 is that FR4 is a fire retardant grade of G10. Therefore, FR4 may be substituted where G10 is called out except in applications where halogens are not desired. G10 can never be substituted where FR4 is called for.

Q:What does fr4 mean?

A:FR4 material is a rigid insulation material made of imported alkali free glass fiber cloth impregnated with imported epoxy resin and added with flame retardant and adhesive.

Q:What is the difference between FR4 and 3240?
A:Raw materials resin and glass cloth are different.The mechanical strength and electrical properties of FR4 are higher than 3240, and FR4 has V0 flame retardancy.The price of 3240 will be cheaper and the density will be a little bit higher, the performance will be a little bit worse.

Q:Is g10 waterproof?

A:G10 material has water resistance, but still has a trace proportion of water absorption, NEMA grade G10 water absorption ratio is less than 0.5%


More Machined Parts:


     Epoxy Fiberglass Laminated Sheet                 Epoxy Fiberglass Machined Parts             FR4 G10 Machined Parts


Machining Bakelite Parts                                   Machining Phenolic Parts                           Machining GPO-3 Parts


Contact us:

JY Machinery Provides one-stop service from raw material sheet/tube/rod supply to customized further processing of nonmetal insulating parts.We can develop and produce various high standards and personalized products according to customers' requirement.Excellent customer service, fair pricing, and quick turnaround times.Get a quote today!

Leave a message
If you are interested in our services and want to know more details,please leave a message here,we will reply you as soon as we can.
Related Product
g10 fiberglass tube

G10 and FR4 laminate tube supplier

JY Machinery provide custom CNC turning, milling, routing and sawing services. We specialize in manufacturing large parts and our equipment is designed to process parts up to 3000mm or longer, with tolerances to +/- .002mm, depending on the material. Call JY Machinery today for all of your G10/FR-4 machining needs.
g10 g11 epoxy glass tube

Customized halogen-free g10 g11 tube manufacturing

G-10/G11 Tubes Product features: Color: Green,and customized is available Max. Temperature: 265° F Tensile Strength: 35,000-50,000 psi (Excellent) Impact Strength: 5.5-12 ft.-lbs./in. (Excellent) Hardness: Rockwell M110 (Extra Hard)
Fiberglass Tube 3240

Reinforced Epoxy Fiberglass Tube 3240 for Insulation

3240 Tube Custom composites are engineered to meet application criteria For Electricity Application
NEMA Grade G10/G11 Tubes

NEMA Grade G10/G11 Epoxy Fiberglass Insulation Tubes for Electricity Mechanical Parts

G10/G11 Tube Custom composites are engineered to meet application criteria Electricity Mechanical Parts

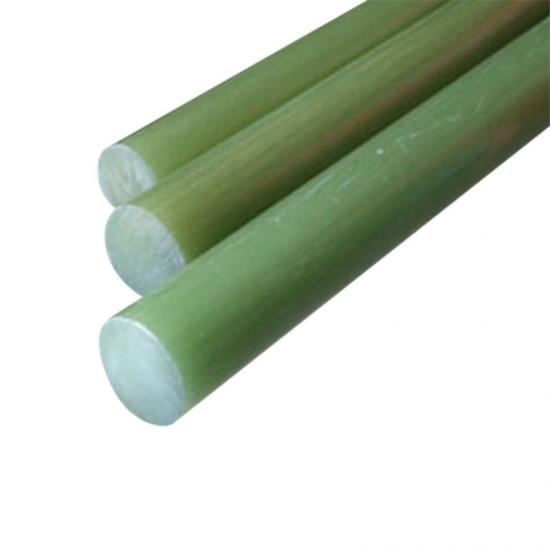

G10 FR4 Glass Epoxy Rod

Insulation FR4 G10 Epoxy Resin Fiberglass Rod Bar

Phenolic G-10/FR4 rod is a fiberglass-reinforced plastic with epoxy resin that provides high moisture resistance Offers good electrical insulation properties for electrical applications Temperature Range:280° F Tensile Strength:36,000 psi

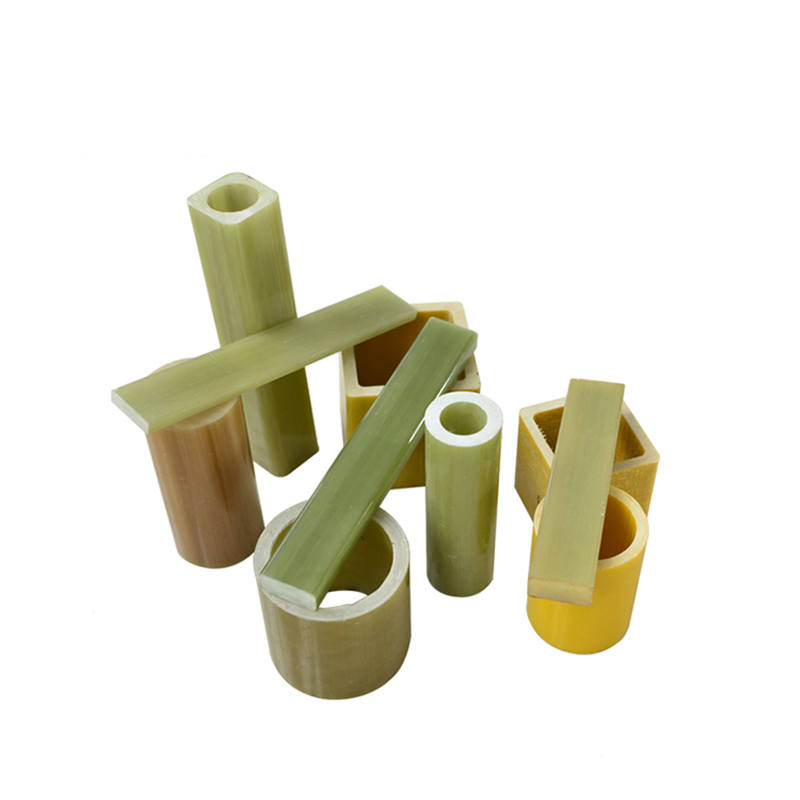

fr4 g10 g11 epoxy tube manufacturing

High Flame-Retardant Epoxy Fiberglass Tube Excellent Voltage Resistance

Technical advantages, mold development and design capabilities, excellent supporting capacity. Excellent size, space stability, non cracking, non Explosive Edge Excellent Water Resistance,Excellent Voltage Resistance Available for humid environment and immerse into transformer oil
